• Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 104526
    • alternative name: McMichael, Leslie

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 190-260 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: M201RG - McMichael Radio Ltd.; Slough
  • Shape
  • Tablemodel with Push Buttons.
  • Notes

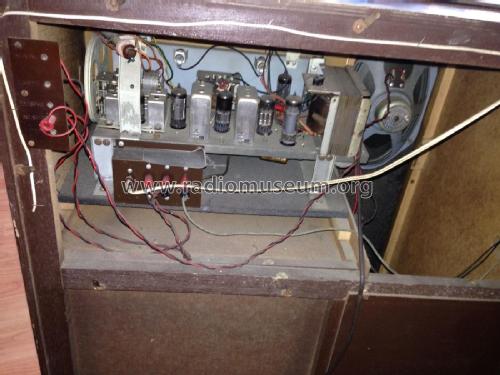

  • Auto-radiogram fitted with BSR UA8 four speed record changer. Same chassis as M201R.
  • Price in first year of sale
  • 49.00 GBP
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)

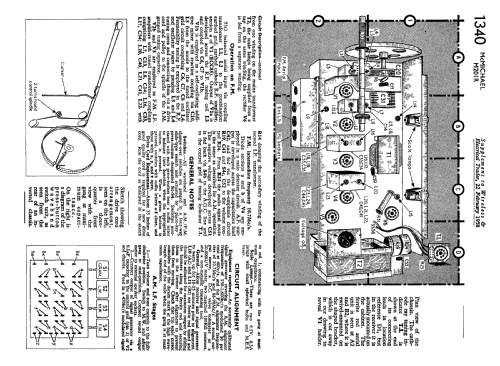

  • Trader Sheet 1340.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
