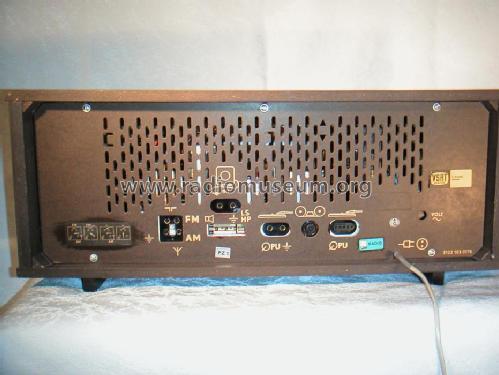

MD4213A /16A; Mediator; La Chaux- (ID = 107812) Radio
Use red slider bar for more.
MD4213A /16A; Mediator; La Chaux- (ID = 107811) Radio
Mediator; La Chaux-: MD4213A /16A [Radio] ID = 107811 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model MD4213A /16A, Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1962/1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 145, 165, 220, 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: MD4213A /16A - Mediator; La Chaux-de-Fonds
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 603 x 250 x 205 mm / 23.7 x 9.8 x 8.1 inch
Notes

Schema siehe Philips B4X23A.
Innen baugleich mit Philips B4X23A aber anderes Gehaeuse und Tonblendentasten anders angeordnet.

Siehe ausserdem Siera SA4213A und Aristona SA4213A.

Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hansjörg Nipp. See "Data change" for further contributors.
