Mende - Radio H.: 108W [Radio] ID = 17953 866x700

Select picture or schematic to display from thumbnails on the right and click for download.

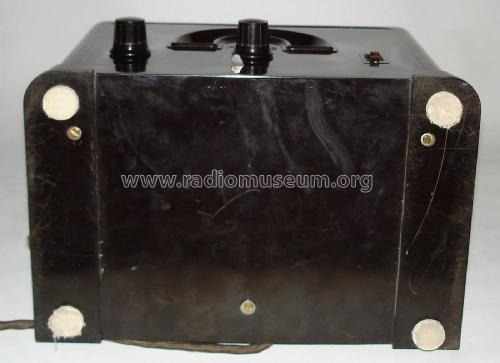

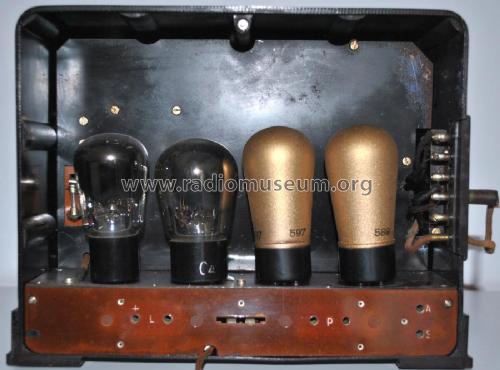

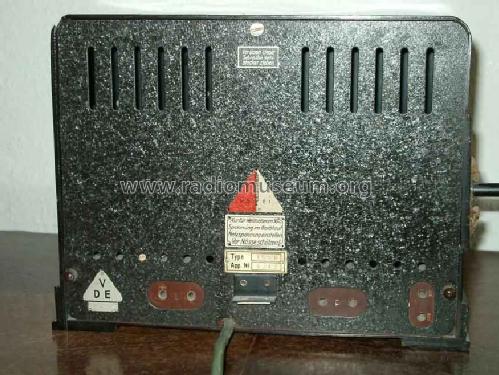

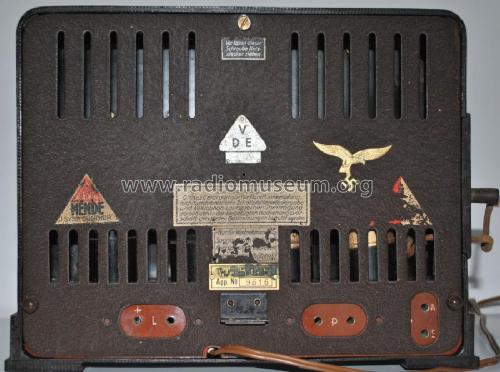

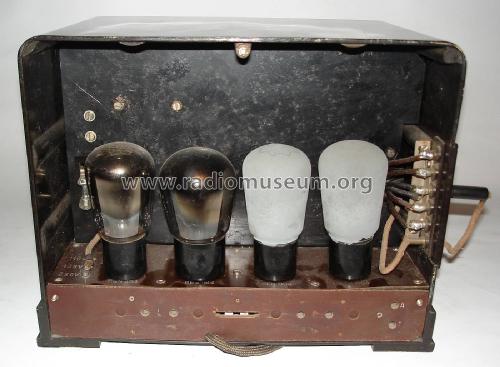

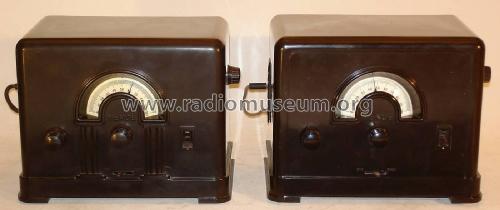

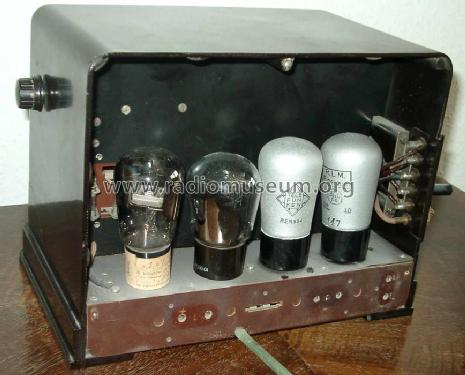

For model 108W Bogenskala, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:

Germany

Manufacturer / Brand:

Mende - Radio H. Mende & Co. GmbH, Dresden

Brand

System Günther

Year: 1931/1932

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

4: REN904 REN904 RE134 or RES164 RGN354

Main principle	to an article TRF with regeneration; 2 AF stage(s)
Tuned circuits	1 AM circuit(s)
Wave bands	Broadcast (MW) and Long Wave.
Details
Power type and voltage	Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker	- This model requires external speaker(s).
Power out
from Radiomuseum.org	Model: 108W [Bogenskala] - Mende - Radio H. Mende & Co.
Material	Bakelite case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	310 x 205 x 205 mm / 12.2 x 8.1 x 8.1 inch
Notes	Chassis der Modelle 98W / 162W mit zusätzlichem Sperrkreis. Preis ohne Röhren. Auch den 108 gab es in zwei Gehäusevarianten, mit und ohne Säulenverzierungen auf der Front. Zumindest beim 98 W und dem 169 W/N sind diese Varianten auch bekannt.
Price in first year of sale	108.00 RM +
Source of data	Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference	Lange + FS-Bestückungstabellen
Mentioned in	Radio-Schnorr-Katalog Nr.53 1931/32
