Mende - Radio H.: 194W [Radio] ID = 991682 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 194W, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1214 RENS1264 RENS1204 RES374 or RE134 RGN1054
Main principle TRF with regeneration; 2 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 194W - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Notes Chassis wie 138W und 180W.
Price in first year of sale 194.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen

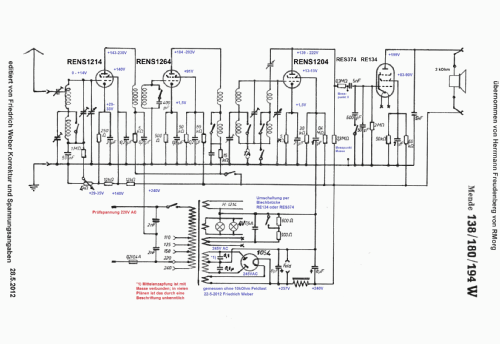

Mentioned in -- Schematic
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
