MS200-W (200W)

MS200-W ; Mende - Radio H. (ID = 4865) Radio

MS200-W ; Mende - Radio H. (ID = 23272) Radio
MS200-W ; Mende - Radio H. (ID = 623530) Radio MS200-W ; Mende - Radio H. (ID = 623531) Radio
MS200-W ; Mende - Radio H. (ID = 158272) Radio MS200-W ; Mende - Radio H. (ID = 53067) Radio
MS200-W ; Mende - Radio H. (ID = 53068) Radio MS200-W ; Mende - Radio H. (ID = 158271) Radio
MS200-W ; Mende - Radio H. (ID = 158273) Radio MS200-W ; Mende - Radio H. (ID = 859606) Radio
MS200-W ; Mende - Radio H. (ID = 859607) Radio MS200-W ; Mende - Radio H. (ID = 859608) Radio
Use red slider bar for more.
MS200-W ; Mende - Radio H. (ID = 623530) Radio

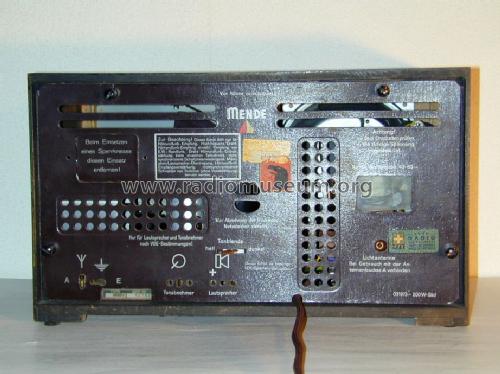

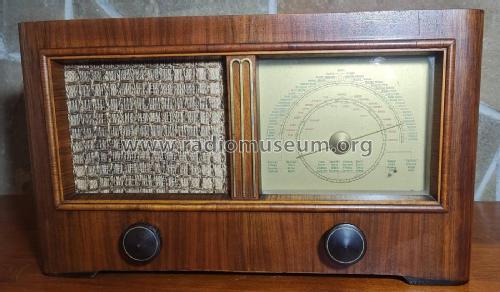

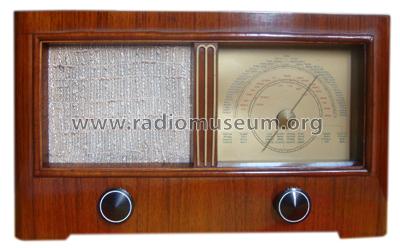

Mende - Radio H.: MS200-W [Radio] ID = 623530 933x680
Select picture or schematic to display from thumbnails on the right and click for download.
For model MS200-W (200W), Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: MS200-W - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 445 x 240 x 240 mm / 17.5 x 9.4 x 9.4 inch
Notes Das Typschild des Empfängers zeigt MS200W, dagegen führen die Service-Unterlagen die Typbezeichnung 200W.
Es handelt sich dabei um dasselbe Modell.
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 306 models, 276 with images and 197 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
