248WK; Mende - Radio H. (ID = 1689445) Radio
Mende - Radio H.: 248WK [Radio] ID = 1689445 930x975
Select picture or schematic to display from thumbnails on the right and click for download.

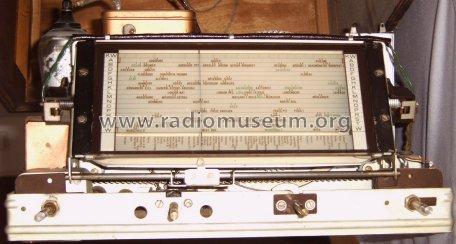

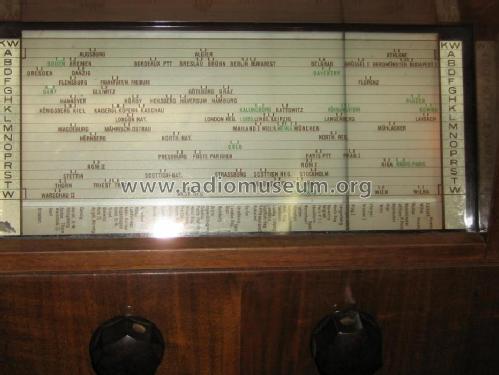

For model 248WK, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1284 RENS1284 RENS1374d RGN1064
Main principle Superheterodyne (common); ZF/IF 482 kHz; Reaction
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 248WK - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 410 x 430 x 310 mm / 16.1 x 16.9 x 12.2 inch
Notes Orig.Mende Super Typ 248 Zweikreis-Dreiröhrensuper, mit außergewöhnlicher Trennschärfe und Klangschönheit, eingebauter Dynamo-Lautsprecher, ACB-Skala, Tonblende, Lautstärke-Regulierung, Tagesempf. 15 und mehr Stationen, abends mehr als 60 Stationen
Mentioned in Mende-Werkstatthandbuch, RADIO-WEB Katalog-Nr.3310

Model page created by Martin Steyer. See "Data change" for further contributors.



All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 310 models, 280 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Mende - Radio H.: 248WK
Threads: 1 | Posts: 4
Hits: 1465     Replies: 3
mende: Mende 248WK; exciting coil resistance.
Piotr Jachymczyk
30.Jan.13
  1

Hello,

I bought this radio but unfortunately without loudspeaker. I have a few loudspeakers of that kind, but I wonder, what's resistance of the exctitation coil so I could fit the best loudspeaker?

Regards,

Piotr

Dietmar Rudolph
31.Jan.13
  2

Dear Piotr,

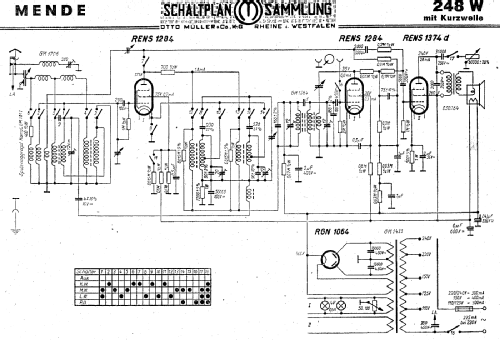

if you look at the schematic, you will find 400V at the cathode of the rectifier RGN1064. Behind the choke of the speaker there are 260V, which can be found at the screen grid of the output tube RENS1374d.

This is a difference of 140V.

The currents drawn by the tubes can be estimated as follows. The anode current of the RENS1374d is 26mA. Its screen current is 10mA, which can be seen from its data sheet. The estimatet current of the rest of the set is about 6mA. So the total current is about 42mA.

Therefore the resistance of the field coil of the speaker is about 140V/42mA = 3.3kΩ.

When you test your speakers, please do not forget to check/replace C7 = 5000cm ≈ 5nF first. This is the coupling condenser from the audion RENS1284 to the grid of the RENS1374d. These condensors are usually no longer good, and the RENS1374d will terefore draw to much current and will be overloaded.

Regards,

Dietmar

Piotr Jachymczyk
31.Jan.13
  3

Thank you for your answer, I didn't see this "400V" writing, otherwise I'd calculate that myself :)

But also I have question, as I have more experience in radios from 50s... This is strange superheterodyne/reaction type of radio. Does this reaction works only in Long and Middle Waves and short waves are in superheterodyne circuit, or reaction is used as additional amplification of IF?

Regards,

Piotr

Dietmar Rudolph
01.Feb.13
  4

As can be seen from the fact that the 248W was offered simpy with MW and LW only (248W) as well as with LW, MW and SW (248WK) , the SW is an add-on to the simple version of this set. And also the case of the 248WK is different from that of the 248W.

The 248W as well as the 248WK has for LW and MW a cathode mixer which was common in those days when no special mixing tube was available yet. Both types only have one IF stage, and since RF diodes were not yet available, the IF stage is constructed as an audion. It has a fixed regeneration for the IF frequency and needs not to be changed.

Because the SW of the 248WK is an add-on, the operation of the set is here totally different. For SW the first stage operates as an audion with regeneration. Its detected audio signal is coupled to the grid of the output stage via C32.

The way to process SW was usual at that time. Similar solutions are found in sets of different makes, e.g. Siemens 36WLK .

Regards,

Dietmar
