265W; Mende - Radio H. (ID = 24243) Radio

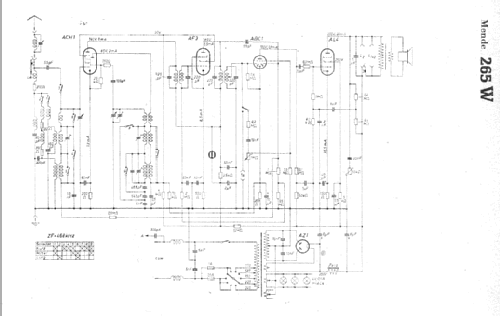

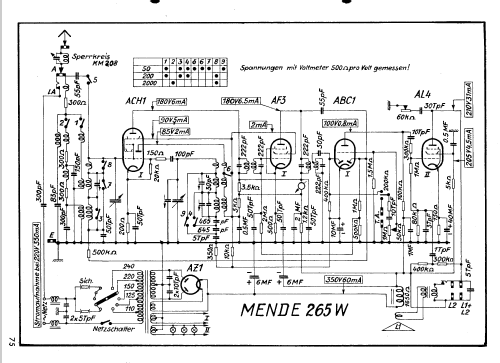

Mende - Radio H.: 265W [Radio] ID = 24243 880x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 265W, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 265W - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 350 x 300 mm / 21.7 x 13.8 x 11.8 inch
Notes Feldstärke-Anzeige.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 265.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Historische Radios (1-5) = zur Verknüpfung mit Modellseiten
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 310 models, 280 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
