E45; Mende - Radio H. (ID = 464) Radio

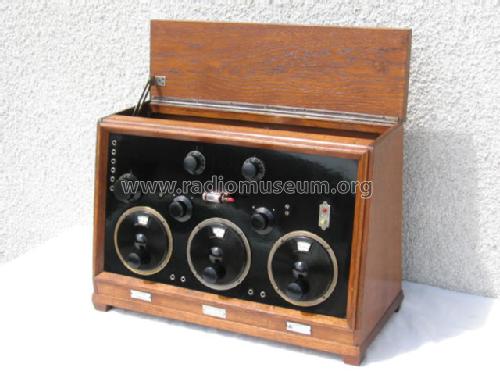

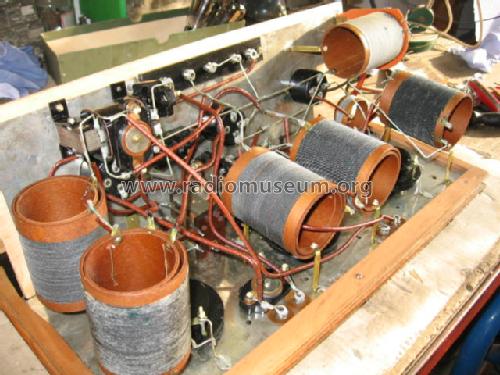

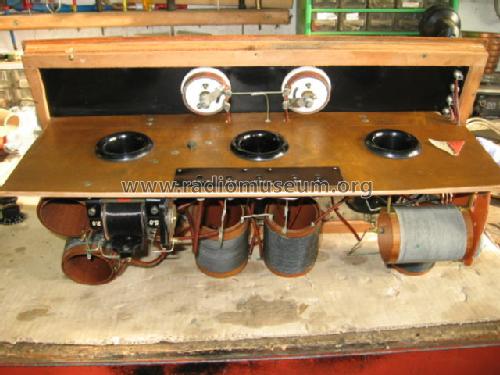

Mende - Radio H.: E45 [Radio] ID = 464 675x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model E45, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1927–1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RE064 RE144 RE154 or RE134
Main principle TRF with diode detector; 2 Special; 2 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4 / 100 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: E45 - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 490 x 340 x 220 mm / 19.3 x 13.4 x 8.7 inch
Notes Reflex mit Detektor; 3 große Knöpfe; Steilpult [559, 560].
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 210.00 RM
Source of data Radio-Diehr, Berlin, 1928/1929 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Historische Radios Band I (8545)
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 309 models, 279 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
