Gross-Super 595W, MGS595W; Mende - Radio H. (ID = 62548) Radio

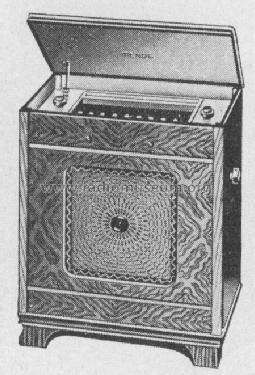

Mende - Radio H.: Gross-Super 595W, MGS595W [Radio] ID = 62548 451x661
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gross-Super 595W, MGS595W, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EF11 EBC11 EL12 C/EM2 AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Gross-Super 595W, MGS595W - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 640 x 790 x 390 mm / 25.2 x 31.1 x 15.4 inch
Notes ZF=468/473/482 kHz; 9 Stationstasten.
Price in first year of sale 595.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 309 models, 279 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
