For model Dublette ID = 3544, Mende - Radio H. Mende & Co. GmbH, Dresden:

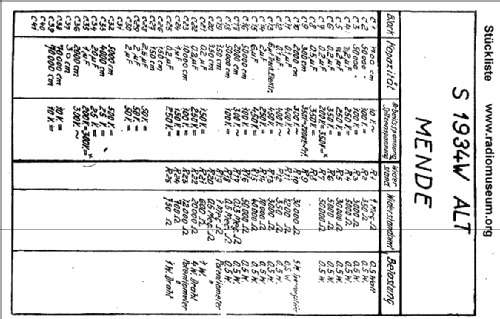

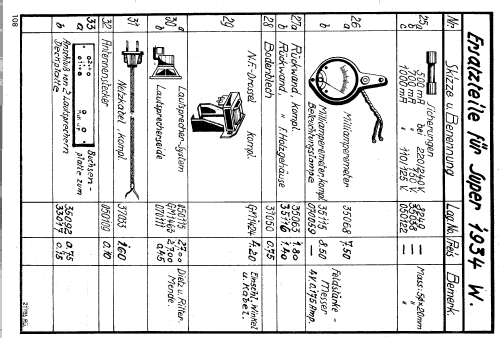

Bild aus Servicedoku.

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 9999/9999 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: RENS1214 REN704d RENS1264 REN914 REN904 RENS1374d RGN1054
Main principle Superhet with RF-stage; ZF/IF 482 kHz; Anode bend detection
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125: 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dublette ID = 3544 - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Abstimmanzeige mit Instrument. Separate Steuerröhre für Fadingregelung: REN904
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (1) -- Schematic


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
