• Country
• Germany

• Manufacturer / Brand
• Mende - Radio H. Mende & Co. GmbH, Dresden

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3640

• • Brand: System Günther

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 EL11 AZ11 EFM11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

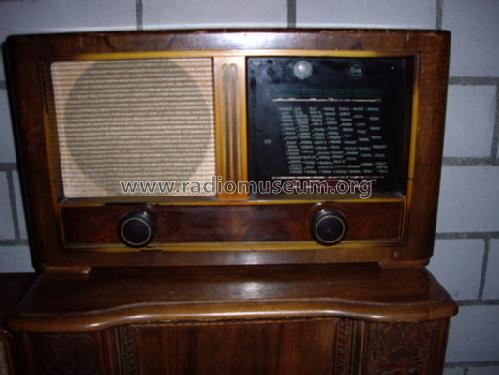

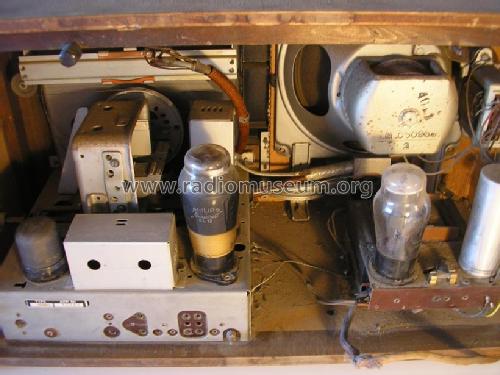

• Model: MS300-W - Mende - Radio H. Mende & Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 565 x 320 x 260 mm / 22.2 x 12.6 x 10.2 inch

• Notes
• Ch=216W. Auch Export.
  Das Typschild des Empfängers zeigt MS300W, dagegen führen die Service-Unterlagen die Typbezeichnung 300W.
  Es handelt sich dabei um dasselbe Modell.

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
