Botschafter (I) W66

Botschafter W66; Metz Transformatoren (ID = 512090) Radio

Botschafter W66; Metz Transformatoren (ID = 1569971) Radio

Botschafter W66; Metz Transformatoren (ID = 1569972) Radio

Botschafter W66; Metz Transformatoren (ID = 1569973) Radio

Botschafter W66; Metz Transformatoren (ID = 1569974) Radio
Botschafter W66; Metz Transformatoren (ID = 486532) Radio Botschafter W66; Metz Transformatoren (ID = 486533) Radio
Botschafter W66; Metz Transformatoren (ID = 486534) Radio Botschafter W66; Metz Transformatoren (ID = 486535) Radio
Botschafter W66; Metz Transformatoren (ID = 200701) Radio Botschafter W66; Metz Transformatoren (ID = 486536) Radio
Botschafter W66; Metz Transformatoren (ID = 486537) Radio
Use red slider bar for more.

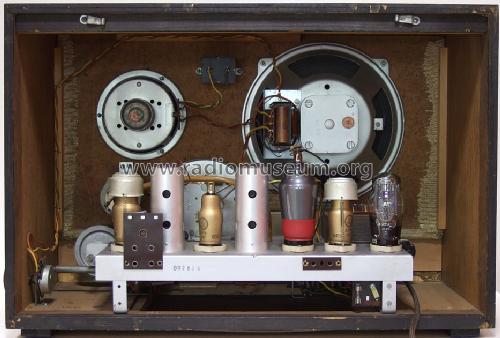

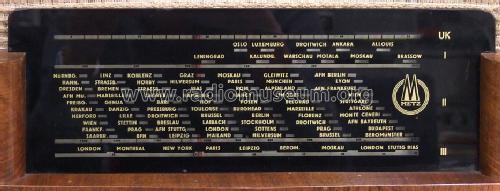

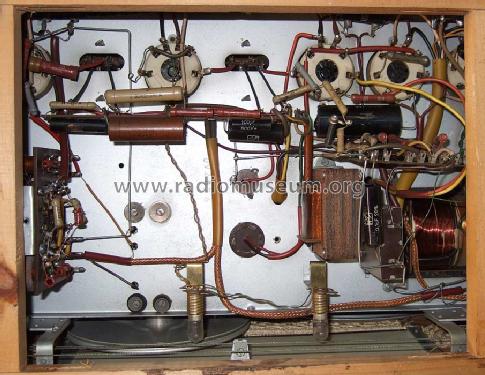

Botschafter W66; Metz Transformatoren (ID = 486532) Radio
Metz Transformatoren: Botschafter W66 [Radio] ID = 486532 933x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Botschafter (I) W66, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH4 EF9 EF9 EBL1 EM4 AZ1
Main principle Superheterodyne (common); ZF/IF 468 or 473 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Botschafter W66 - Metz Transformatoren- und
Material Wooden case
Dimensions (WHD) 560 x 400 x 300 mm / 22 x 15.7 x 11.8 inch
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
External source of data Ernst Erb, HB9RXQ
Source of data Das Rundfunk-Jahr 1948/49

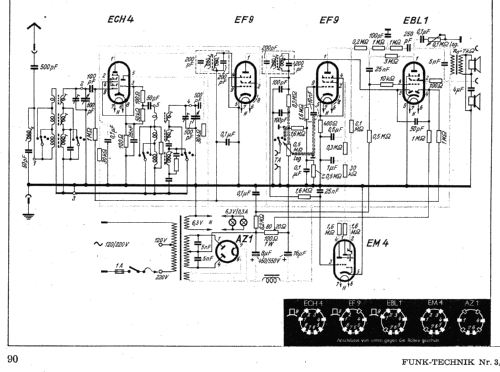

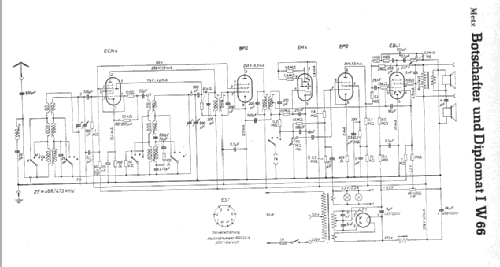

Literature/Schematics (1) Lange / Nowisch, "Empfängerschaltungen der Radioindustrie"


All listed radios etc. from Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Here you find 577 models, 446 with images and 296 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
