Trix Popular

Trix Popular ; Microphona Mikrofona (ID = 2635148) Radio Trix Popular ; Microphona Mikrofona (ID = 2635149) Radio
Trix Popular ; Microphona Mikrofona (ID = 2354086) Radio Trix Popular ; Microphona Mikrofona (ID = 2354087) Radio
Trix Popular ; Microphona Mikrofona (ID = 2354088) Radio Trix Popular ; Microphona Mikrofona (ID = 2623091) Radio
Use red slider bar for more.

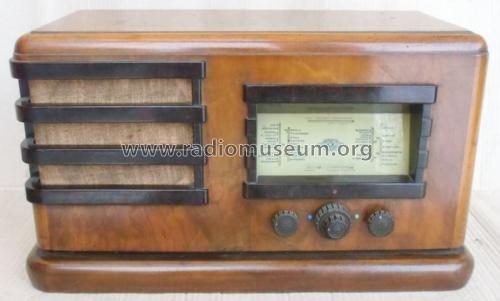

Trix Popular ; Microphona Mikrofona (ID = 2635148) Radio
Microphona Mikrofona: Trix Popular [Radio] ID = 2635148 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trix Popular, Microphona (Mikrofona), Bratri Knotkove, Praha-Strasnice

Country:  Czechoslovakia
Manufacturer / Brand:  Microphona (Mikrofona), Bratri Knotkove, Praha-Strasnice
alternative name

Telefony Microfona
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AF7 AC2 AL1 AZ1
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Trix Popular - Microphona Mikrofona, Bratri
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 275 x 230 mm / 19.7 x 10.8 x 9.1 inch
Notes

Chassis und Schema ist gleich mit Mikrofona MK 304 Primavera.

In einigen Geräten  dieser Form kann man auch Chassis des Typs MK 206 Popular  finden (mit nur drei Röhren).

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Mentioned in Ceskoslovenske prijimace 1933-1945, Baudys 1947

Model page created by Josef Jonasek. See "Data change" for further contributors.



All listed radios etc. from Microphona (Mikrofona), Bratri Knotkove, Praha-Strasnice
Here you find 67 models, 50 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
