Whaddon Radio Set Mk VII "Paraset"

Whaddon Radio Set Mk VII 'Paraset' ; MILITARY U.K. (ID = 2543820) Commercial TRX Whaddon Radio Set Mk VII 'Paraset' ; MILITARY U.K. (ID = 2543825) Commercial TRX
Whaddon Radio Set Mk VII 'Paraset' ; MILITARY U.K. (ID = 2543823) Commercial TRX Whaddon Radio Set Mk VII 'Paraset' ; MILITARY U.K. (ID = 2543822) Commercial TRX

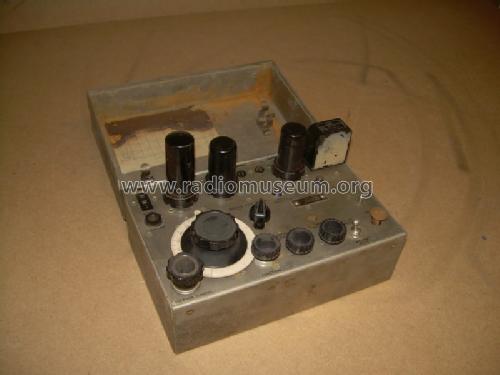

Whaddon Radio Set Mk VII 'Paraset' ; MILITARY U.K. (ID = 1136424) Commercial TRX Whaddon Radio Set Mk VII 'Paraset' ; MILITARY U.K. (ID = 1136425) Commercial TRX
Whaddon Radio Set Mk VII 'Paraset' ; MILITARY U.K. (ID = 1136426) Commercial TRX Whaddon Radio Set Mk VII 'Paraset' ; MILITARY U.K. (ID = 1713318) Commercial TRX
Use red slider bar for more.
Whaddon Radio Set Mk VII 'Paraset' ; MILITARY U.K. (ID = 2543820) Commercial TRX
MILITARY U.K.: Whaddon Radio Set Mk VII "Paraset" [Commercial TRX] ID = 2543820 1400x892
Select picture or schematic to display from thumbnails on the right and click for download.
For model Whaddon Radio Set Mk VII 'Paraset', MILITARY U.K. (different makers for same model):
GB_Whaddon Radio Set Mk VII personal replica_front

Country:  Great Britain (UK)
Manufacturer / Brand:  MILITARY U.K. (different makers for same model)
Year: 1941 ? Category: Commercial Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 3: 6SK7 6SK7 6V6 or 6V6GT
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit. / 6,3 & 360 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Whaddon Radio Set Mk VII "Paraset" - MILITARY U.K. different makers
Material Metal case, TUBES VISIBLE
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 110 x 140 x 225 mm / 4.3 x 5.5 x 8.9 inch
Notes The Mk.VII, also known as "Paraset", is a self contained miniature transceiver designed from SIS Section VII. Used from MI6, SIS and SOE. Many of these transceiver supplied supplied during the WW2 to the Resistence forces mainly in France, Belgium and the Netherlands.
Frequency and coverage: Rx:
3.0 - 7.6 Mhz
Tx:
3.3 - 7.6 Mhz in 2 bands
Range 1: 3.3 - 4.5 Mhz
Range 2: 4.5 -7.6 Mhz
Circuit Features: regenerative detector, AF (AM R/T and CW)
Power Output: 4 - 5 watts RF (cw only)
Tubes: rx: 2 x 6SK7
tx: 1 x 6V6
Power Supply: AC mains unit 110 - 250 V, 40-60 Hz, 1 x 6X5GT rectifier. 6 VDC vibrator unit.
Net weight (2.2 lb = 1 kg) 2.3 lb (2 lb 4.8 oz) / 1.044 kg
Mentioned in Magazine >Radio Communication< November 1982, p. 961

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
