Minerva-Radio: 375U [Radio] ID = 93734 815x700

Select picture or schematic to display from thumbnails on the right and click for download.

For model 375U, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:

Austria

Manufacturer / Brand:

Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Year: 1936/1937

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

5: CK1 CF3 CBC1 CL4 CY1

Main principle	Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits	7 AM circuit(s)
Wave bands	Broadcast, Long Wave and Short Wave.
Details

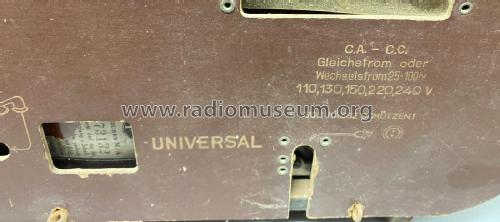

Power type and voltage	AC/DC-set / 110-240 Volt
Loudspeaker	Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org	Model: 375U - Minerva-Radio Radiola-
Notes	Lichtsäulenindikator; Var.BBR.; ZF128, 5
Net weight (2.2 lb = 1 kg)	10.9 kg / 24 lb 0.1 oz (24.009 lb)
Price in first year of sale	500.00 ATS
External source of data	E. Erb 3-907007-36-0
Source of data	Radiokatalog Band 2, Ernst Erb
Circuit diagram reference	Lange + Schenk

All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 559 with images and 444 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
