397-W Type 1939
Use red slider bar for more.
Minerva-Radio: 397-W [Radio] ID = 2017 675x525
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1938/1939 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: ECH11 EBF11 EL11 EL11 EM1 EFM11 AZ11 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 128,5 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110, 130, 150, 220, 240 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: 397-W [Type 1939] - Minerva-Radio Radiola- |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 713 x 465 x 270 mm / 28.1 x 18.3 x 10.6 inch |
| Notes | Variable Bandbreite 2. Magische Auge EFM11 als NF-Pentode! |
| Net weight (2.2 lb = 1 kg) | 19.7 kg / 43 lb 6.3 oz (43.392 lb) |
| Price in first year of sale | 360.00 RM |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Handbuch WDRG 1938 / Radiokatalog Band 2, Ernst Erb |
| Circuit diagram reference | Lange + Schenk |
| Mentioned in | Historische Radios Band IV (222B) |
| Literature/Schematics (1) | -- Original-techn. papers. |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV. |
All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 558 with images and 444 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

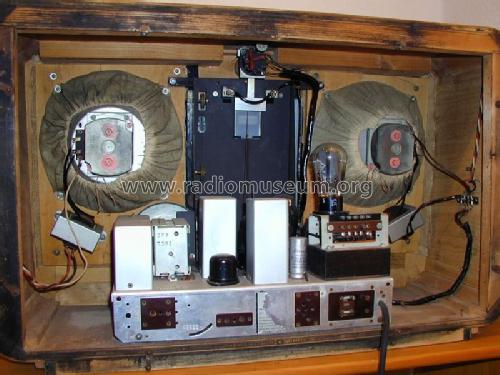

Collection of a member from D
