407W; Minerva-Radio (ID = 74178) Radio

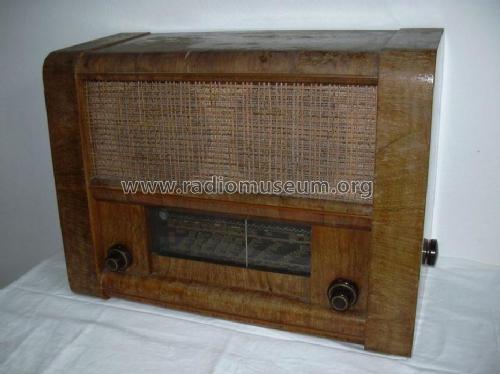

Minerva-Radio: 407W [Radio] ID = 74178 800x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model 407W, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Minerva Type 407W

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF13 ECH11 EBF11 EF11 EM11 EL11 EL11 AZ12
Main principle Superhet with RF-stage; ZF/IF 483 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 18 W (unknown quality)
from Radiomuseum.org Model: 407W - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 660 x 460 x 310 mm / 26 x 18.1 x 12.2 inch
Notes var.BBr.
Net weight (2.2 lb = 1 kg) 20.7 kg / 45 lb 9.5 oz (45.595 lb)
Price in first year of sale 380.00 RM
External source of data E. Erb 3-907007-36-0
Source of data Handbuch WDRG 1939 / Radiokatalog Band 2, Ernst Erb

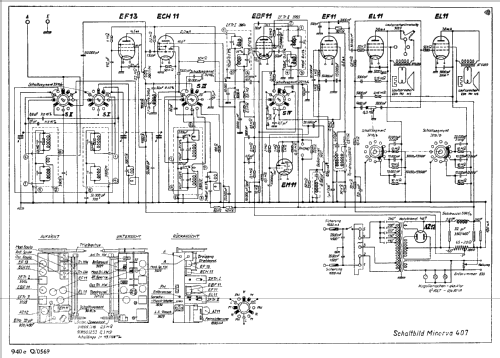

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Historische Radios Band IV (223B*)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 558 with images and 447 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Minerva-Radio: 407W
Threads: 1 | Posts: 1
Hits: 2468     Replies: 0
minerva: Minerva 407W
Gerhard Heigl
03.May.02
  1 Je eine Endröhre steuert einen Lautsprecher
