495/2

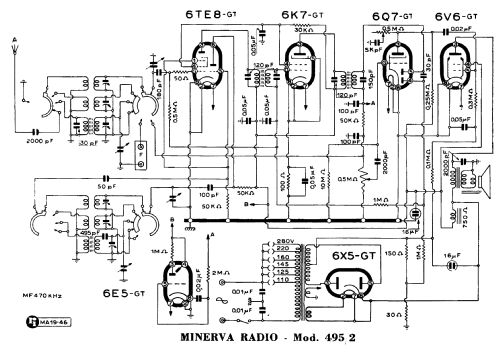

495/2; Minerva Ital-Minerva (ID = 519365) Radio
495/2; Minerva Ital-Minerva (ID = 2203406) Radio 495/2; Minerva Ital-Minerva (ID = 2178732) Radio
495/2; Minerva Ital-Minerva (ID = 2178734) Radio 495/2; Minerva Ital-Minerva (ID = 2178735) Radio
495/2; Minerva Ital-Minerva (ID = 2178740) Radio 495/2; Minerva Ital-Minerva (ID = 2178737) Radio
495/2; Minerva Ital-Minerva (ID = 2178742) Radio 495/2; Minerva Ital-Minerva (ID = 2178743) Radio
495/2; Minerva Ital-Minerva (ID = 2178745) Radio 495/2; Minerva Ital-Minerva (ID = 383877) Radio
Use red slider bar for more.
495/2; Minerva Ital-Minerva (ID = 2203406) Radio
Minerva Ital-Minerva: 495/2 [Radio] ID = 2203406 1400x929
Select picture or schematic to display from thumbnails on the right and click for download.
For model 495/2, Minerva (Ital-Minerva); Milano

Country:  Italy
Manufacturer / Brand:  Minerva (Ital-Minerva); Milano
alternative name

Cozzi Luigi Dell'Aquila
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6TE8GT 6K7GT 6Q7GT 6V6GT 6E5GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 495/2 - Minerva Ital-Minerva; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 360 x 250 mm / 23.6 x 14.2 x 9.8 inch
Mentioned in Guida Pratica Antique Radio V (2003)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Minerva (Ital-Minerva); Milano
Here you find 234 models, 189 with images and 131 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
