505/4

505/4; Minerva Ital-Minerva (ID = 256254) Radio
505/4; Minerva Ital-Minerva (ID = 448406) Radio 505/4; Minerva Ital-Minerva (ID = 699579) Radio
505/4; Minerva Ital-Minerva (ID = 1008095) Radio 505/4; Minerva Ital-Minerva (ID = 1008098) Radio
505/4; Minerva Ital-Minerva (ID = 1008099) Radio 505/4; Minerva Ital-Minerva (ID = 1008100) Radio
505/4; Minerva Ital-Minerva (ID = 1008104) Radio 505/4; Minerva Ital-Minerva (ID = 1196291) Radio
505/4; Minerva Ital-Minerva (ID = 1976579) Radio 505/4; Minerva Ital-Minerva (ID = 1976580) Radio
Use red slider bar for more.
505/4; Minerva Ital-Minerva (ID = 448406) Radio
Minerva Ital-Minerva: 505/4 [Radio] ID = 448406 933x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model 505/4, Minerva (Ital-Minerva); Milano

Country:  Italy

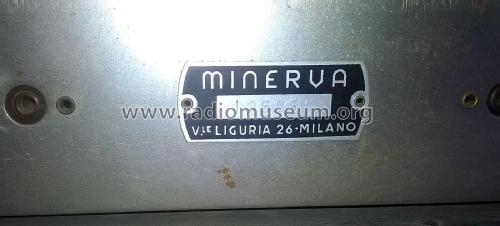

Manufacturer / Brand:  Minerva (Ital-Minerva); Milano
alternative name

Cozzi Luigi Dell'Aquila
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL41 EM4 AZ41
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)

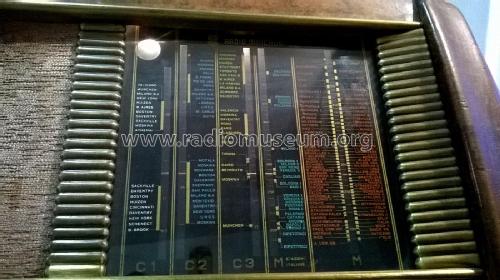

Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220; 280 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch
Power out
from Radiomuseum.org Model: 505/4 - Minerva Ital-Minerva; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 630 x 325 x 285 mm / 24.8 x 12.8 x 11.2 inch
Notes 3 gamme onde corte
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 177)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Minerva (Ital-Minerva); Milano
Here you find 238 models, 192 with images and 131 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
