757/858
Minerva Radio; Paris
- Country
- France
- Manufacturer / Brand
- Minerva Radio; Paris
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232226
FRONT
Radio Scale
REAR
Rear cover
Record player

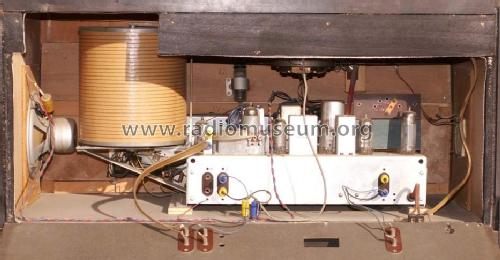

Chassis 1
Chassis 2
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- 3 Loudspeakers / Ø 24 cm = 9.4 inch
- Power out
- 4 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 757/858 - Minerva Radio; Paris
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 880 x 680 x 390 mm / 34.6 x 26.8 x 15.4 inch
- Notes
-
This radio set was manufactured in France under Minerva license. The FM tuner and the IF filters are made in Germany or Austria. The set uses 3 loudspeakers: an Audax 24 x 32cm for the bass, a 15cm VEGA for the medium and an electrostatic tweeter.
Even with a single EL84, this gives a pretty good sound. The sensitivity is excellent, a loop antenna with an EF89; preamplifier is used on MW and LW, giving an outstanding sensitivity and noise rejection. The record player is of French origine "Voix du monde".
- Net weight (2.2 lb = 1 kg)
- 40 kg / 88 lb 1.7 oz (88.106 lb)
- Author
- Model page created by Serge Laffont. See "Data change" for further contributors.
