Consul 648

Consul 648; Minerva-Radio (ID = 137660) Television

Consul 648; Minerva-Radio (ID = 137661) Television

Consul 648; Minerva-Radio (ID = 137663) Television

Consul 648; Minerva-Radio (ID = 137858) Television

Consul 648; Minerva-Radio (ID = 137859) Television
Consul 648; Minerva-Radio (ID = 137587) Television Consul 648; Minerva-Radio (ID = 137659) Television
Consul 648; Minerva-Radio (ID = 735589) Television
Use red slider bar for more.
Consul 648; Minerva-Radio (ID = 137587) Television
Minerva-Radio: Consul 648 [Television] ID = 137587 488x359
Select picture or schematic to display from thumbnails on the right and click for download.
For model Consul 648, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
OneTwoSold 22773167 Verkäufer: MRS_SANDY

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC189 PCF86 PC88 PC86 EF183 EF80 EF184 PCL84 PCF80 PCL85 ECH84 PL500 PY88 DY87 23SP4
Semiconductors (the count is only for transistors) 2:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220/240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Consul 648 - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 750 x 540 x 375 mm / 29.5 x 21.3 x 14.8 inch
Notes Röhren teilweise mehrfach.Mit Zeilenwobbler für zeilenfreies Bild VHF/UHF-Tuner, Band I, III, IV, V. Ausführung als nur UHF-vorbereitet 6580.- öS.
Net weight (2.2 lb = 1 kg) 33 kg / 72 lb 11 oz (72.687 lb)
Price in first year of sale 7'180.00 öS
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

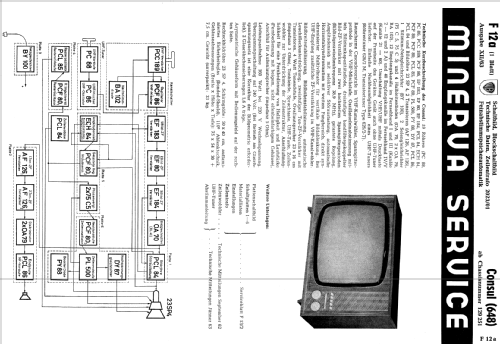

Literature/Schematics (1) -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.
