• Year
  • 1960
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 84556

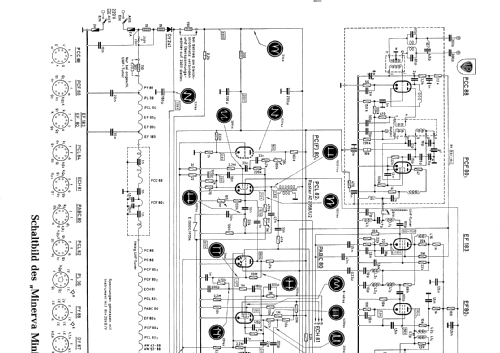

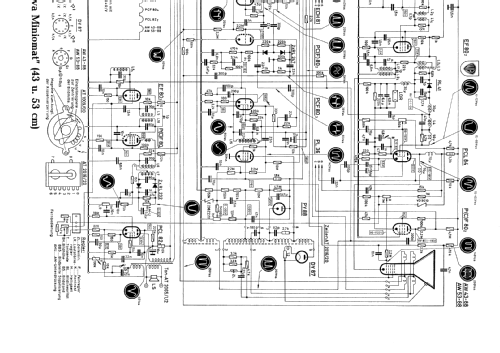

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 18
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 38900/33400/5500 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • AC/DC-set / 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 inch = 48.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Miniomat 53 - Minerva-Radio Radiola-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 620 x 530 x 460 mm / 24.4 x 20.9 x 18.1 inch
  • Notes

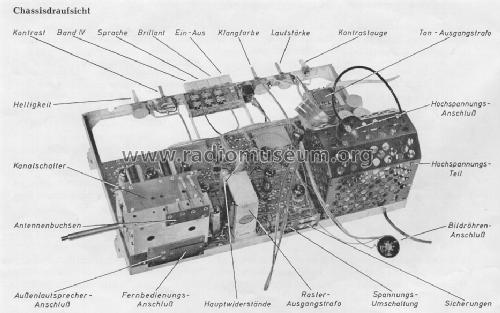

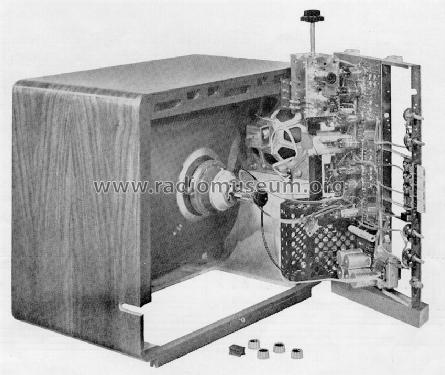

  • Minerva Miniomat 53;
    53 cm 110° s/w TV, Empfangsbereich VHF, Band I + III, UHF vorbereitet, automatische Synchronisation, Chassis mit 6 gedruckten Platten, Kontrastautomatik, 160 W Leistungsaufnahme, Weiterentwicklung des Modells "Minion".
  • Net weight (2.2 lb = 1 kg)
  • 33.2 kg / 73 lb 2 oz (73.128 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Mentioned in

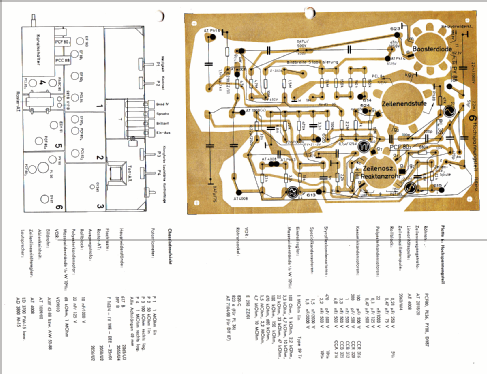

  • - - Manufacturers Literature (Minerva Technische Mitteilungen Juli 1960, Ausf. Beschreibung)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
