• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1960 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 191305

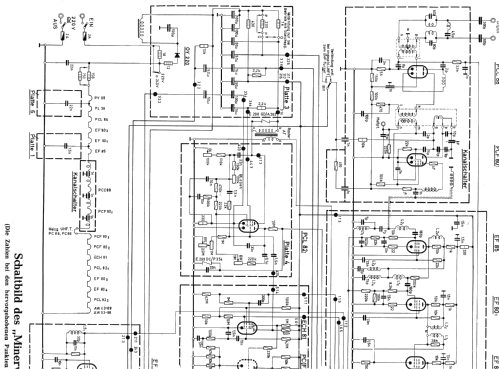

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC88 PCF80 EF85 EF80 EF80 PCL84 EF80 EF80 PCL82 ECH81 PCF80 PCF80 PCL82 PY88 PL36 DY87 AW53-88

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

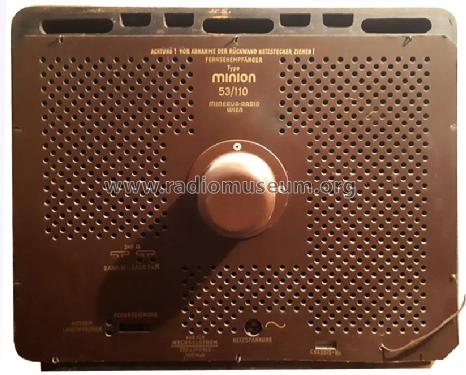

• Model: Minion 53/110 [110° Ablenkung] - Minerva-Radio Radiola-

• Shape
• Tablemodel, low profile (big size).

• Notes
• Band I+III, Band IV vorbereitet.
  53 cm / 110° Bildröhre.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
