Perfect 546U

Perfect 546U; Minerva-Radio (ID = 71805) Radio
Perfect 546U; Minerva-Radio (ID = 25289) Radio Perfect 546U; Minerva-Radio (ID = 1777852) Radio
Use red slider bar for more.
Perfect 546U; Minerva-Radio (ID = 25289) Radio
Minerva-Radio: Perfect 546U [Radio] ID = 25289 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Perfect 546U, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Bild ebay

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: UF80 UC92 UCH81 UF85 UM4 UABC80 UL41 UY41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 130; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Perfect 546U - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 330 x 230 mm / 20.5 x 13 x 9.1 inch
Notes

Minerva 4 Band 8 Röhren Allstrom-Vollsuper Modell Perfect 546U.
5-stufige Klangregelung
Nussholzgehäuse

Siehe auch:
Minerva Perfect 546W (Wechelstromgerät, 1800,-- ATS)

Net weight (2.2 lb = 1 kg) 9.2 kg / 20 lb 4.2 oz (20.264 lb)
Price in first year of sale 1'750.00 ATS
External source of data E. Erb 3-907007-36-0

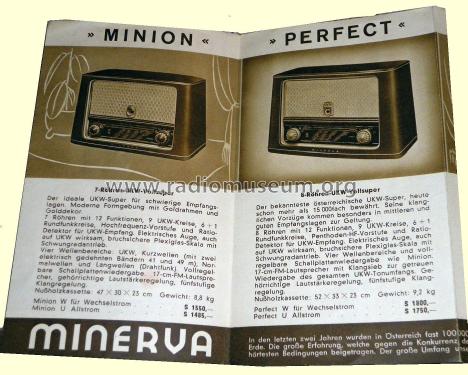

Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
