Pic Nic 597/1

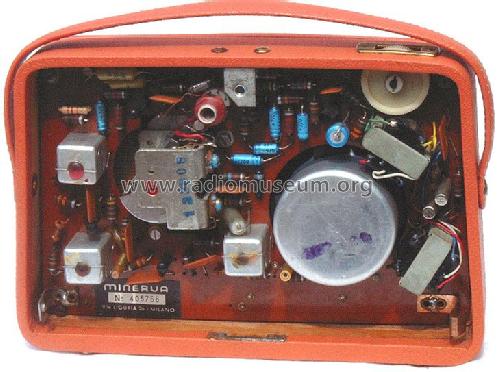

Pic Nic 597/1; Minerva Ital-Minerva (ID = 1283747) Radio Pic Nic 597/1; Minerva Ital-Minerva (ID = 1284731) Radio
Pic Nic 597/1; Minerva Ital-Minerva (ID = 1284732) Radio Pic Nic 597/1; Minerva Ital-Minerva (ID = 1606498) Radio
Pic Nic 597/1; Minerva Ital-Minerva (ID = 1606500) Radio Pic Nic 597/1; Minerva Ital-Minerva (ID = 2049212) Radio
Use red slider bar for more.
Pic Nic 597/1; Minerva Ital-Minerva (ID = 1283747) Radio
Minerva Ital-Minerva: Pic Nic 597/1 [Radio] ID = 1283747 682x558
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pic Nic 597/1, Minerva (Ital-Minerva); Milano:
Aus Radiobote 119/120

Country:  Italy
Manufacturer / Brand:  Minerva (Ital-Minerva); Milano
alternative name

Cozzi Luigi Dell'Aquila
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Pic Nic 597/1 - Minerva Ital-Minerva; Milano
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 200 x 145 x 65 mm / 7.9 x 5.7 x 2.6 inch
Notes

Interne Ferritantenne.
Anschluß für externe Drahtantenne.

See also Minerva PIC-NIC S.

Net weight (2.2 lb = 1 kg) 1.160 kg / 2 lb 8.9 oz (2.555 lb)
Mentioned in Museums Bote, Österr. (Heft 119-120/2003, S.14 f, Gerätebeschreibung)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
