Pic-Nic S Special 617/1
Use red slider bar for more.

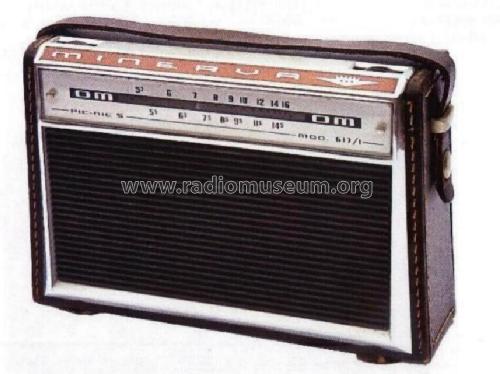

Minerva Ital-Minerva: Pic-Nic S Special 617/1 [Radio] ID = 1284839 857x642
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Cozzi Luigi Dell'Aquila | ||||
|---|---|---|---|---|---|
| Year: 1961/1962 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA79 OA79 |
| Main principle | Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 5 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch |
| Power out | |
| from Radiomuseum.org | Model: Pic-Nic S Special 617/1 - Minerva Ital-Minerva; Milano |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 205 x 140 x 65 mm / 8.1 x 5.5 x 2.6 inch |
| Notes | Stesse caratteristiche tecniche della Minerva PIC NIC 597/1. Mobile in cuoio rinforzato con finiture in metallo cromato. Gehäuse aus Pappe, überzogen mit Echtleder, grob genäht. NF.- Stufe mit 2 Stk. OC71N (gleich wie OC71, doch bereits im Metallgehäuse, Übergangstype zur Reihe AC125...) |
| Net weight (2.2 lb = 1 kg) | 1.1 kg / 2 lb 6.8 oz (2.423 lb) |

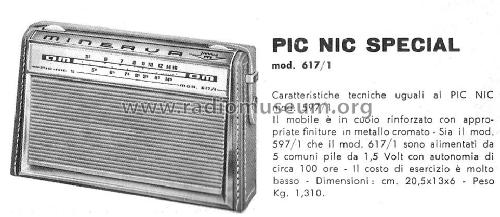

| Source of data | - - Manufacturers Literature |
Model page created by Emilio Ciardiello. See "Data change" for further contributors.
