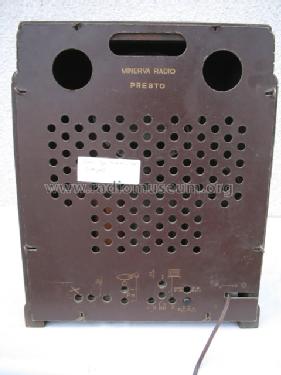

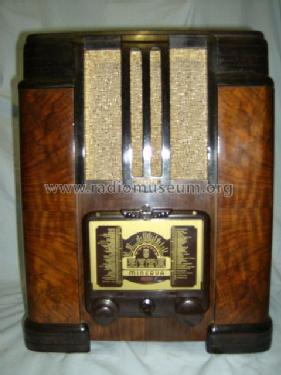

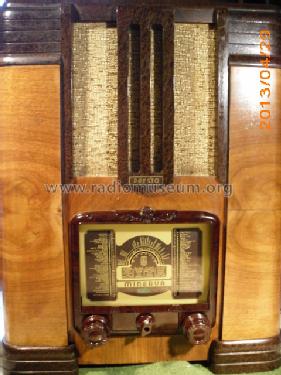

For model Presto W Holz, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF7 AB2 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 155; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Presto W Holz - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 380 x 460 x 270 mm / 15 x 18.1 x 10.6 inch
Notes =Ch.Allegro A;ZF128,5
Net weight (2.2 lb = 1 kg) 13.7 kg / 30 lb 2.8 oz (30.176 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
Mentioned in Radio-Amateur Wien (RA, 46), (Österreichischer Radio Amateur, ÖRA) (3602)
