Resident 656 19 Zoll

Resident 656; Minerva-Radio (ID = 139409) Television

Resident 656; Minerva-Radio (ID = 139410) Television

Resident 656; Minerva-Radio (ID = 1416758) Television

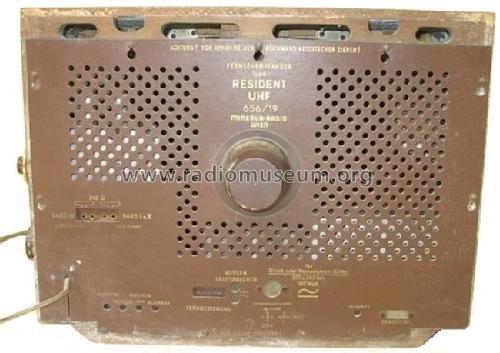

Resident 656; Minerva-Radio (ID = 287686) Television Resident 656; Minerva-Radio (ID = 287691) Television

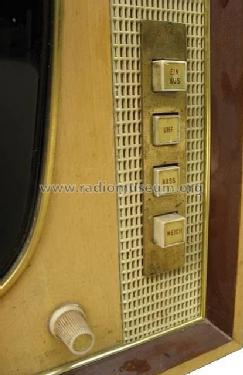

Resident 656; Minerva-Radio (ID = 287687) Television Resident 656; Minerva-Radio (ID = 139408) Television
Use red slider bar for more.
Resident 656; Minerva-Radio (ID = 287686) Television
Minerva-Radio: Resident 656 [Television] ID = 287686 650x483
Select picture or schematic to display from thumbnails on the right and click for download.
For model Resident 656 19 Zoll, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
By courtesy of Lauritz.com (Bild bearbeitet)

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1964 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PC88 PC86 PCC189 PCF86 EF183 EF80 EF184 PCL84 ECH84 PCF80 PCL85 PCL86 PL500 PY88 DY87 19ASP4
Semiconductors (the count is only for transistors) 2:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Resident 656 [19 Zoll] - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 450 x 345 mm / 23.6 x 17.7 x 13.6 inch
Notes Fernsehband I und III (Kanäle 2-12 und 2A), Band IV/V (Kanäle 21-60). 19-Zoll´-Bildröhre.
Net weight (2.2 lb = 1 kg) 21.7 kg / 47 lb 12.8 oz (47.797 lb)
Price in first year of sale 5'400.00 ATS
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
