SIE 611

SIE 611; Minerva Ital-Minerva (ID = 1763165) Radio SIE 611; Minerva Ital-Minerva (ID = 1763155) Radio
SIE 611; Minerva Ital-Minerva (ID = 1763157) Radio SIE 611; Minerva Ital-Minerva (ID = 1763158) Radio
SIE 611; Minerva Ital-Minerva (ID = 1763160) Radio SIE 611; Minerva Ital-Minerva (ID = 1763161) Radio
SIE 611; Minerva Ital-Minerva (ID = 1763162) Radio SIE 611; Minerva Ital-Minerva (ID = 1763164) Radio
SIE 611; Minerva Ital-Minerva (ID = 1763168) Radio
Use red slider bar for more.

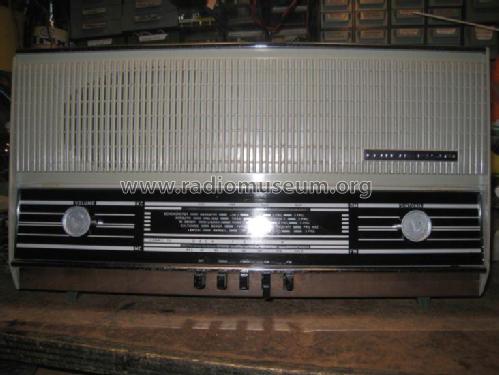

SIE 611; Minerva Ital-Minerva (ID = 1763165) Radio
Minerva Ital-Minerva: SIE 611 [Radio] ID = 1763165 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model SIE 611, Minerva (Ital-Minerva); Milano

Country:  Italy
Manufacturer / Brand:  Minerva (Ital-Minerva); Milano
alternative name

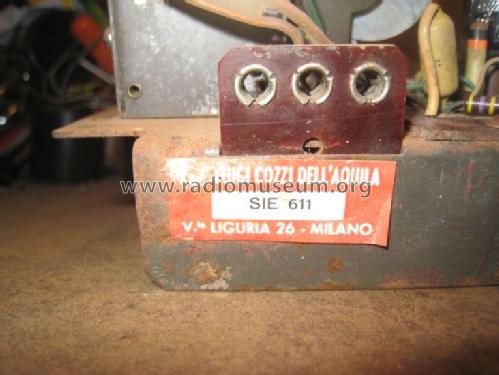

Cozzi Luigi Dell'Aquila
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCC85 UCH81 UF89 EABC80 UL84
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 3 W (undistorted)
from Radiomuseum.org Model: SIE 611 - Minerva Ital-Minerva; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 395 x 220 x 140 mm / 15.6 x 8.7 x 5.5 inch
Notes

1 diodo rettificatore al silicio.

AM/FM - selettore TV - Uscita Fono -

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
