Superb - T 638 Ch.Nr.: 110951 - 118450

Superb - T 638; Minerva-Radio (ID = 139038) Television

Superb - T 638; Minerva-Radio (ID = 139039) Television

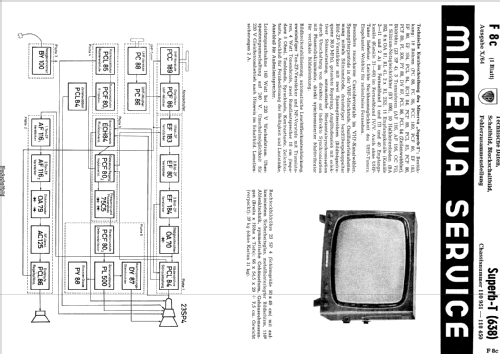

Superb - T 638; Minerva-Radio (ID = 139040) Television
Superb - T 638; Minerva-Radio (ID = 139031) Television
Use red slider bar for more.
Superb - T 638; Minerva-Radio (ID = 139031) Television
Minerva-Radio: Superb - T 638 [Television] ID = 139031 680x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superb - T 638 Ch.Nr.: 110951 - 118450, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1962/1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC189 PCF86 PC88 PC86 EF183 EF80 EF184 PCL84 PCF80 ECH84 PCL85 PCL86 PL500 PY88 DY87 23SP4
Semiconductors (the count is only for transistors) 3:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Superb - T 638 [Ch.Nr.: 110951 - 118450] - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 545 x 365 mm / 26 x 21.5 x 14.4 inch
Notes Röhren teilweise mehrmals. Fernsehband I und III (Kanäle 2-11 und 2A), Band IV/V (Kanäle 21-60). Auch ohne UHF-Tuner lieferbar. 23-Zoll-Bildröhre.
Net weight (2.2 lb = 1 kg) 31 kg / 68 lb 4.5 oz (68.282 lb)
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
