Ralex ; Mivar VAR; Milano (ID = 649369) Radio
Mivar VAR; Milano: Ralex [Radio] ID = 649369 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ralex, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner

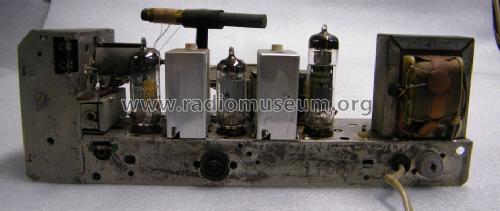

Valves / Tubes 4: ECC85 ECH81 EF89 ECL86
Semiconductors (the count is only for transistors) OA91 or. SFD108 AA119 or. 1N542 AA119 or. 1N542 BY123
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Ralex - Mivar VAR; Milano
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 330 x 150 x 120 mm / 13 x 5.9 x 4.7 inch

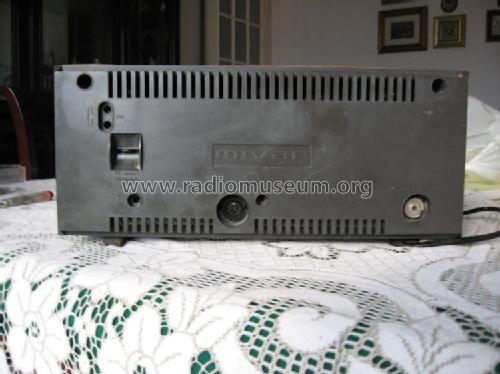

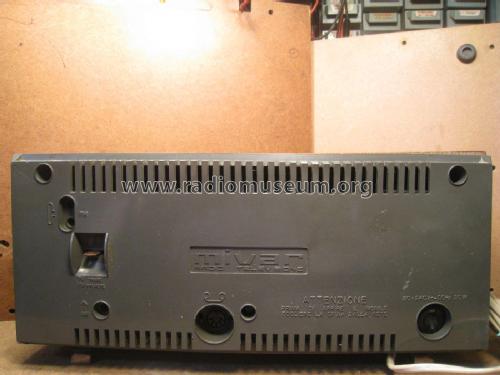

Notes Ingresso Fono (connettore din)-Selettore posteriore per ascolto dell'audio del primo canale tv (RAI1).
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Price in first year of sale 24'600.00 Lire
Literature/Schematics (1) Catalogo Radio Televisione Acustica ANIE, vol.12

Model page created by Fabio Masetti. See "Data change" for further contributors.



All listed radios etc. from Mivar (VAR); Milano
Here you find 117 models, 105 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
