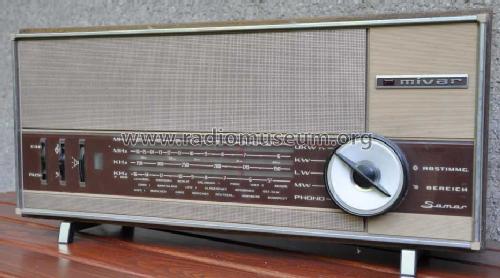

Samar ; Mivar VAR; Milano (ID = 788191) Radio
Mivar VAR; Milano: Samar [Radio] ID = 788191 933x492
Select picture or schematic to display from thumbnails on the right and click for download.
For model Samar, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Samar - Mivar VAR; Milano
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 440 x 205 x 140 mm / 17.3 x 8.1 x 5.5 inch
Notes

Apparecchio per l'esportazione, con scala parlante in tedesco.

Deutsche Beschriftung und Skala!

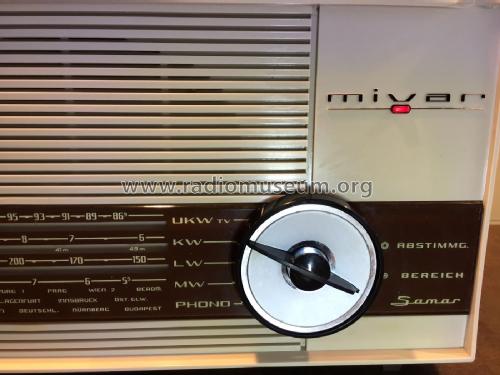

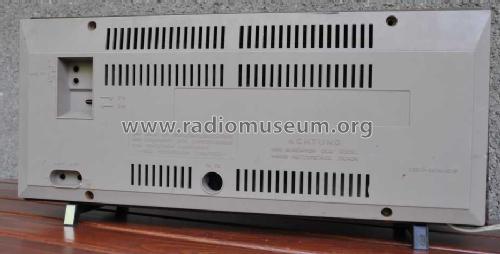

Frequenzbereiche: UKW 87...105 MHz; KW 6...16 MHz; LW 150...350 kHz; MW 550...1600 kHz. Umschaltung TV/UKW an der Rückseite. Ferrit-Rundstab (14 cm). TA/TB-Anschluß über DIN 5-pol-Buchse. Schaltbare Tonblende. Ovallautsprecher (10 x 15 cm). Trockengleichrichter (B250/C75). Leistungsaufnahme ca. 40 Watt. Skalenaufschrift in deutscher Sprache.

Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
