For model Ideal Radio 5W641H, Modry Bod, Praha-Kolin

Country:  Czechoslovakia
Manufacturer / Brand:  Modry Bod, Praha-Kolin
Brand

Ideal-Radio (Blaupunkt CS)
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Ideal Radio 5W641H - Modry Bod, Praha-Kolin
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 525 x 320 x 240 mm / 20.7 x 12.6 x 9.4 inch
Notes Ideal Radio 5W641H ist von der Schaltung ähnlich zu Blaupunkt 5W641 Pressstoff (ID = 639).
Produkton Ideal-Radio, Prag (Lizenzfertigung).
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947

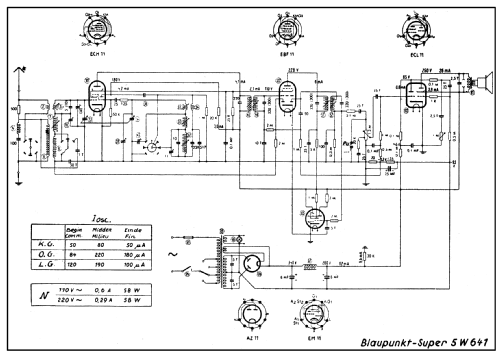

Literature/Schematics (1) -- Schematic
