For model BČN {БЧН}, MEMZA Electromechanical Works (ex VTU), Moscow:
Thanks for Valery Charcenko, Russia

Country:  Soviet Union
Manufacturer / Brand:  MEMZA Electromechanical Works (ex VTU), Moscow
Year: 1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: УБ-110 or УБ-107 or ПТ-2 УБ-110 or УБ-107 or ПТ-2 УБ-107 or ПТ-2 УБ-132 or ПТ-2
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4-5/80/160 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: BČN {БЧН} - MEMZA Electromechanical Works
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, slant panel.
Dimensions (WHD) 400 x 200 x 210 mm / 15.7 x 7.9 x 8.3 inch
Notes Designed by the Russian engineer Borusevich.
Some tube variants: tube1(2)usable pt-2 or ub-107 or ub-110, tube3 usable pt-2 or ub-107, tube3 pt-2 or ub-132.
Coverage 300-1850 meters in 4 ranges.
Source of data -- Collector info (Sammler)

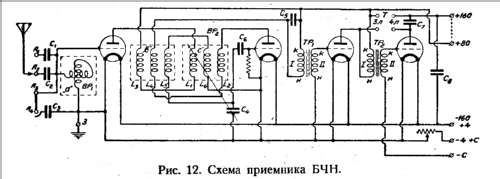

Mentioned in -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
