For model 5P32R Ch= HS-559, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1DN5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / (7.5; 90); AC/DC 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 5P32R Ch= HS-559 - Motorola Inc. ex Galvin Mfg.Co
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Color= Red leatherette. See here about Tinkertoy technique. The Beitman R-18 shows the following models with this chassis HS-559: 5P31A, 5P32C, 5P32E, 5P32R and 5P32Y but also 5P33EW, 5P33VW and 5P33W for chassis HS-561. See also 66L1 and 66L2 with Tinkertoy technique.

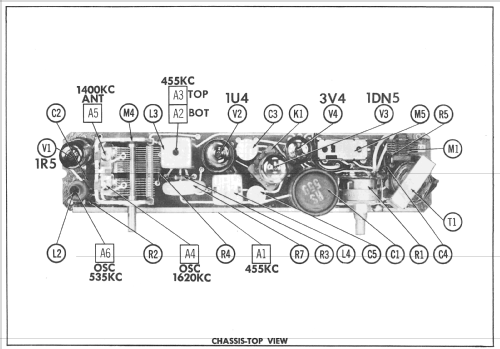

Circuit diagram reference Beitman Radio Diagrams Vol. 18, 1958
Mentioned in Collector's Guide to Antique Radios (6th edition)

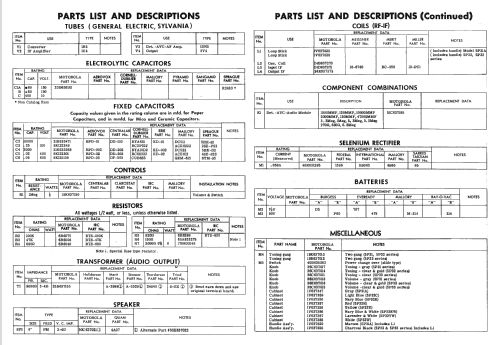

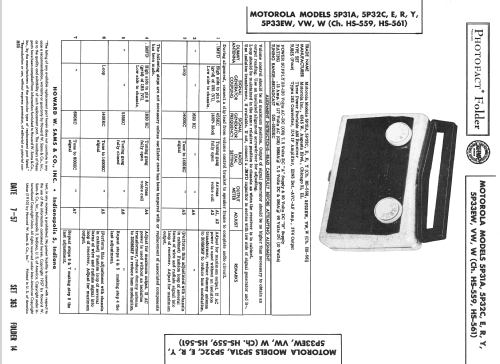

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 363 Folder 14 Dated 7-57)

Model page created by Egon Penker. See "Data change" for further contributors.
