For model 5P33EW Ch= HS-561, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1DN5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 7.5 & 90; AC/DC 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: 5P33EW Ch= HS-561 - Motorola Inc. ex Galvin Mfg.Co
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 225 x 75 mm / 10.2 x 8.9 x 3 inch
Notes

Color= Navy & White. See here about Tinkertoy technique. The Beitman R-18 shows the following models with the chassis HS-559: 5P31A, 5P32C, 5P32E, 5P32R and 5P32Y but also 5P33EW, 5P33VW and 5P33W for chassis HS-561. See also 66L1 and 66L2 with Tinkertoy technique.

Rotating antenna "ROTO-TENNA", contained in handle.

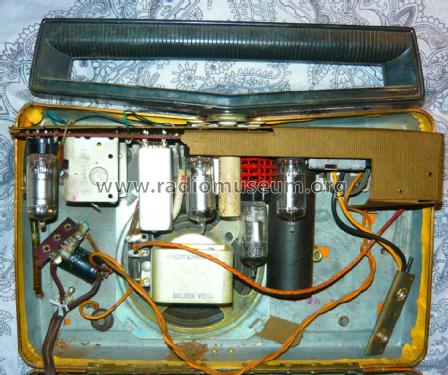

Radio equipped with PLAcir plated circuit chassis.







Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Circuit diagram reference Beitman Radio Diagrams Vol. 18, 1958

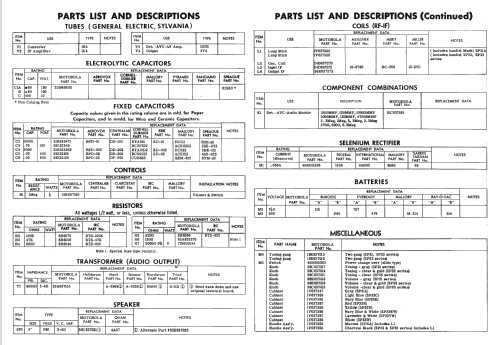

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 363 Folder 14 Dated 7-57)

Model page created by Egon Penker. See "Data change" for further contributors.
