A692SR

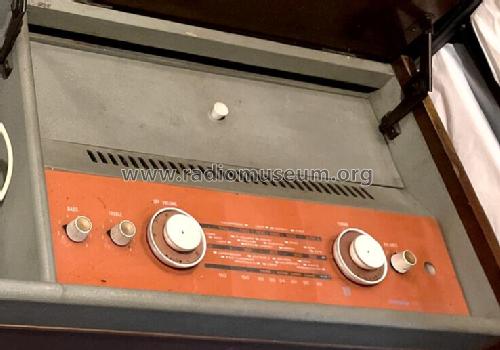

A692SR; Murphy Radio Ltd.; (ID = 597940) Radio

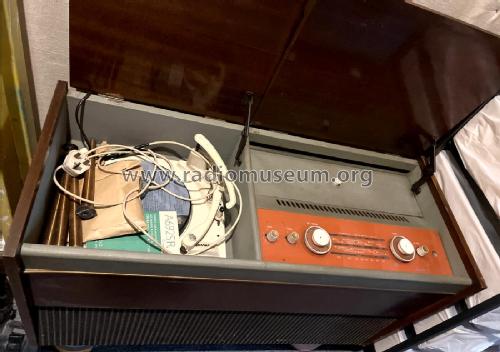

A692SR; Murphy Radio Ltd.; (ID = 597941) Radio
Use red slider bar for more.

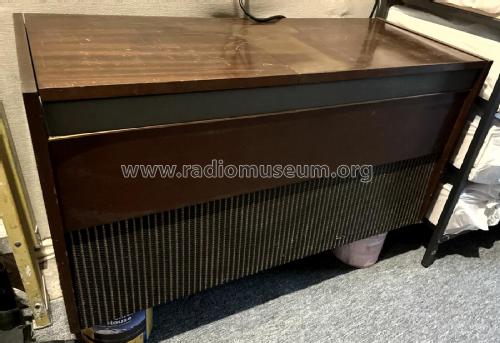

A692SR; Murphy Radio Ltd.; (ID = 597940) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 ECC83 EM85 ECC83 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: A692SR - Murphy Radio Ltd.; Welwyn
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 37.75 x 29.26 x 16 inch / 959 x 743 x 406 mm
Notes Released in August 1960 price £74 11s 0d. Garrard RC209 autochanger fitted with a Ronette S105 cartridge. Optional Murphy S3 freestanding loudspeakers at extra cost. Metal rectifier.
Net weight (2.2 lb = 1 kg) 70 lb 0 oz (70 lb) / 31.780 kg
Price in first year of sale 75.00 GBP
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Peter Hoddow. See "Data change" for further contributors.
