• Country
• Denmark

• Manufacturer / Brand
• Herofon (Herophon), Hede Nielsens Fabriker; Horsens

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 269456

• • alternative name: Hede Nielsen's Fabrikker A/S

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UF89 UABC80 UL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

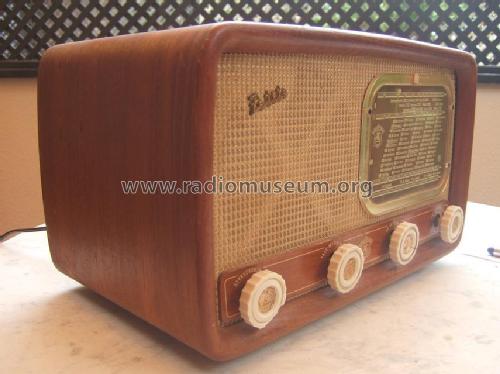

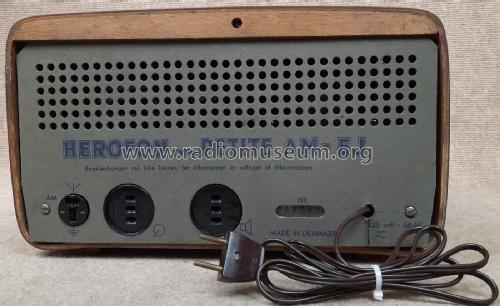

• Model: Petite AM-EJ - Herofon Herophon, Hede

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 370 x 220 x 210 mm / 14.6 x 8.7 x 8.3 inch

• Notes

• 2 SW ranges, one of which Marine band.

• Mentioned in
• -- Schematic

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
