- Country
- Germany
- Manufacturer / Brand
- Niemann & Co., Werner (Nicolette), Rundfunkwerk Sonata; Halle (Saale)
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15991
-
- Brand: Nicolette
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org

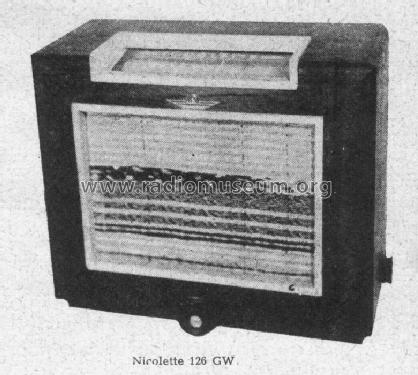

- Model: Nicolette 126GW - Niemann & Co., Werner
- Dimensions (WHD)
- 346 x 280 x 175 mm / 13.6 x 11 x 6.9 inch
- Notes
- [RM48-224; RM4902-56]
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Price in first year of sale
- 260.00 RM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange + Schenk Nr. 30 von 1948
- Mentioned in
- Funkgeschichte der GFGF (9500)
