For model Sonata 52WP, Niemann & Co., Werner (Nicolette), Rundfunkwerk Sonata; Halle (Saale):
Niemann&Co Sonata 52WP

Country:  Germany
Manufacturer / Brand:  Niemann & Co., Werner (Nicolette), Rundfunkwerk Sonata; Halle (Saale)
Brand

Nicolette
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 EL11 6E5_DDR or EM11 AZ11 or EZ12
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Sonata 52WP - Niemann & Co., Werner
Material Wooden case

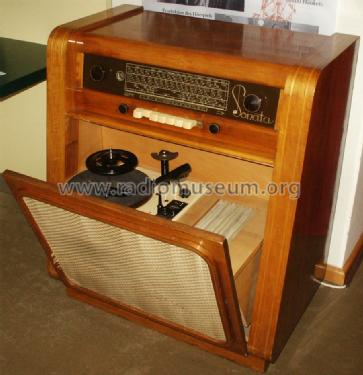

Shape Console with Push Buttons.
Notes Wie 52W plus 78er 10-fach Plattenwechsler. Vorbereitet für Einbau eines UKW-Zusatzes.
LW, 2 x MW, 4 x KW.
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

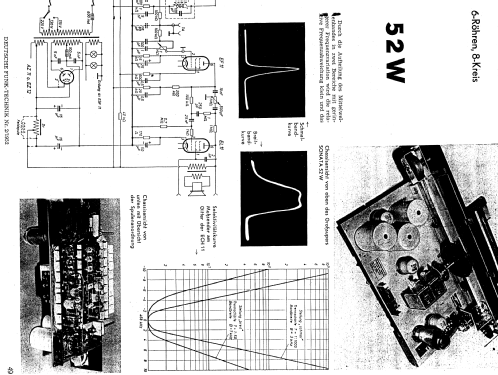

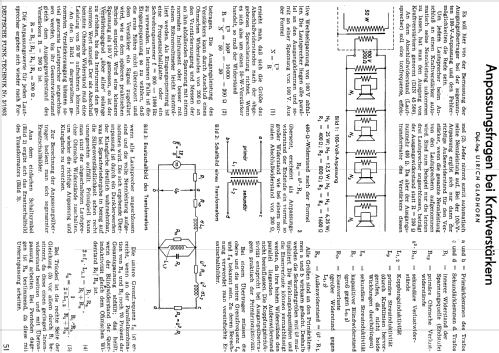

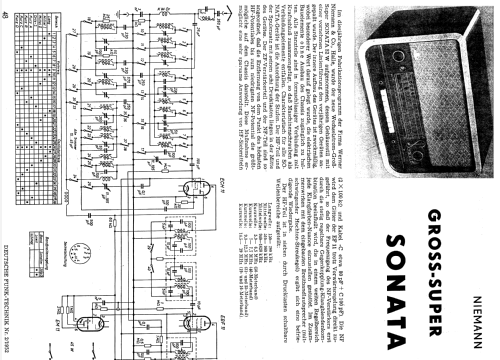

Mentioned in Deutsche Funk-Technik (Deutsche Funktechnik) [DDR] (5202)
