UKW-Einbausuper 12642/59 Z-Sdfg-E 88-108 MHz

Nogoton, Norddeutsche Gerätebau; Delmenhorst/Oldenburg

  • Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 26426
    • Brand: Noroton

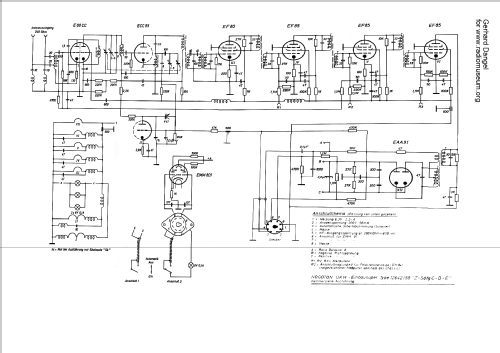

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage
  • Tuned circuits
  • 17 FM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Powered by external power supply or a main unit. / 6,3V & 200 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: UKW-Einbausuper 12642/59 Z-Sdfg-E [88-108 MHz] - Nogoton, Norddeutsche
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 320 x 95 x 50 mm / 12.6 x 3.7 x 2 inch
  • Notes
  • UKW-Einbausuper, kommerzielle Ausführung

    Im Datenblatt ist als 2. Röhre eine E88CC eingetragen, in der Schaltung aber eine ECC85.

  • Price in first year of sale
  • 245.00 DM
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original prospect or advert
  • Author
  • Model page created by Gerhard Dangel. See "Data change" for further contributors.
