Egmont 53 W946

Egmont 53 W946; Nora; Berlin (ID = 807402) Radio

Egmont 53 W946; Nora; Berlin (ID = 807403) Radio
Egmont 53 W946; Nora; Berlin (ID = 236772) Radio Egmont 53 W946; Nora; Berlin (ID = 123318) Radio
Egmont 53 W946; Nora; Berlin (ID = 123317) Radio Egmont 53 W946; Nora; Berlin (ID = 123316) Radio

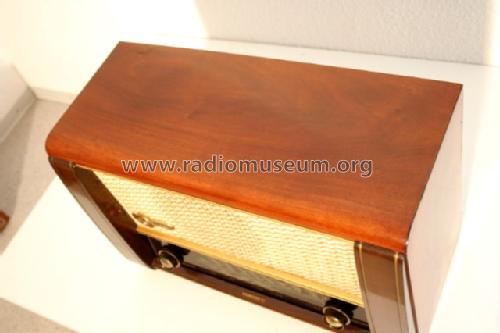

Egmont 53 W946; Nora; Berlin (ID = 508902) Radio Egmont 53 W946; Nora; Berlin (ID = 508903) Radio

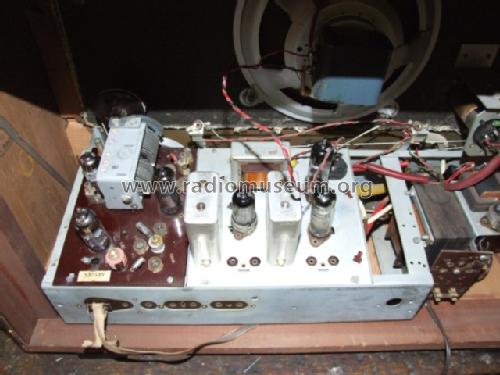

Egmont 53 W946; Nora; Berlin (ID = 508904) Radio Egmont 53 W946; Nora; Berlin (ID = 508905) Radio
Egmont 53 W946; Nora; Berlin (ID = 717225) Radio Egmont 53 W946; Nora; Berlin (ID = 1456650) Radio
Use red slider bar for more.
Egmont 53 W946; Nora; Berlin (ID = 236772) Radio
Nora; Berlin: Egmont 53 W946 [Radio] ID = 236772 900x614
Select picture or schematic to display from thumbnails on the right and click for download.
For model Egmont 53 W946, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF80 EC92 ECH81 EF41 EM34 EABC80 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Egmont 53 W946 - Nora; Berlin
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 373 x 257 mm / 22 x 14.7 x 10.1 inch
Notes Variable Bandbreite.
Net weight (2.2 lb = 1 kg) 11.6 kg / 25 lb 8.8 oz (25.551 lb)
Price in first year of sale 328.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53
