Graz W79

Graz W79; Nora; Berlin (ID = 974078) Radio

Graz W79; Nora; Berlin (ID = 4474) Radio

Graz W79; Nora; Berlin (ID = 359440) Radio
Graz W79; Nora; Berlin (ID = 22820) Radio Graz W79; Nora; Berlin (ID = 22821) Radio
Graz W79; Nora; Berlin (ID = 100212) Radio Graz W79; Nora; Berlin (ID = 65555) Radio
Graz W79; Nora; Berlin (ID = 66326) Radio Graz W79; Nora; Berlin (ID = 18823) Radio
Graz W79; Nora; Berlin (ID = 708292) Radio Graz W79; Nora; Berlin (ID = 22822) Radio
Graz W79; Nora; Berlin (ID = 115108) Radio Graz W79; Nora; Berlin (ID = 115109) Radio
Use red slider bar for more.
Graz W79; Nora; Berlin (ID = 22820) Radio

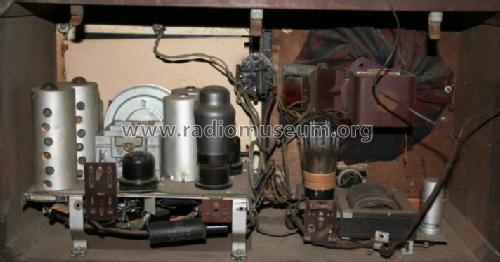

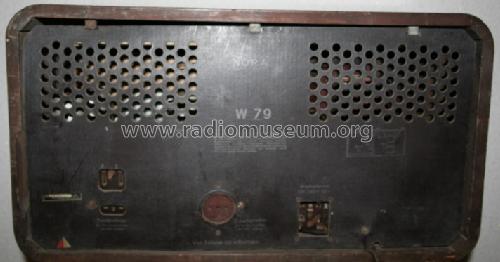

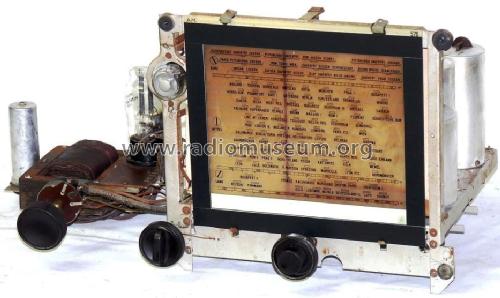

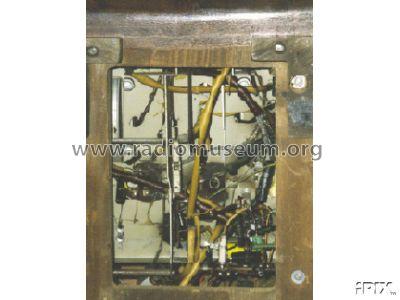

Nora; Berlin: Graz W79 [Radio] ID = 22820 870x567
Select picture or schematic to display from thumbnails on the right and click for download.
For model Graz W79, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Graz W79 - Nora; Berlin
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 310 x 250 mm / 22.4 x 12.2 x 9.8 inch
Notes var.BBr.
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Price in first year of sale 238.00 RM
Collectors' prices
Source of data Katalog Eltax, Berlin, 1939/40 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

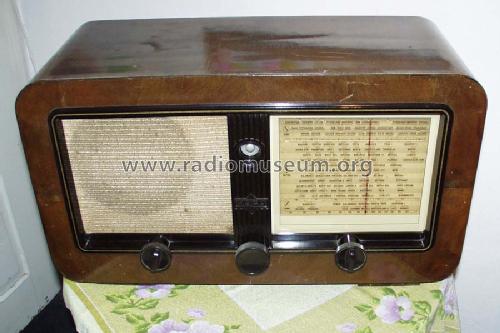

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Nora; Berlin
Here you find 614 models, 530 with images and 336 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
