• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19267

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF80 ECH81 ECH42 EF41 EM5 EAF42 EABC80 ECC40 EL41 EL41

• Main principle
• Superheterodyne (common); ZF/IF 473/10300 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

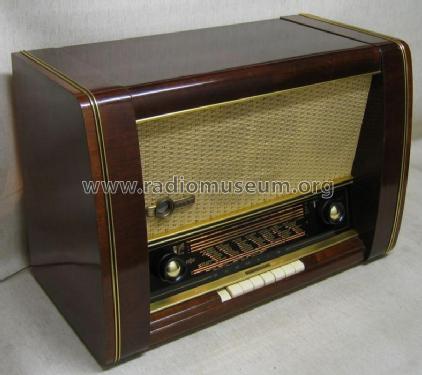

• Model: Imperator 53 II W1166 - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 630 x 430 x 310 mm / 24.8 x 16.9 x 12.2 inch

• Notes
• 3 Kurzwellenbereiche: 14,2 - 18,0; 9,6 - 12,1; 6.0 - 7,1 MHz.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 525.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54

• Literature/Schematics (1)
• -- Schematic
