Noraphon-Ultra K1037

Noraphon-Ultra K1037; Nora; Berlin (ID = 15372) Radio

Noraphon-Ultra K1037; Nora; Berlin (ID = 15373) Radio

Noraphon-Ultra K1037; Nora; Berlin (ID = 1020659) Radio

Noraphon-Ultra K1037; Nora; Berlin (ID = 1620748) Radio
Noraphon-Ultra K1037; Nora; Berlin (ID = 39724) Radio Noraphon-Ultra K1037; Nora; Berlin (ID = 1333037) Radio

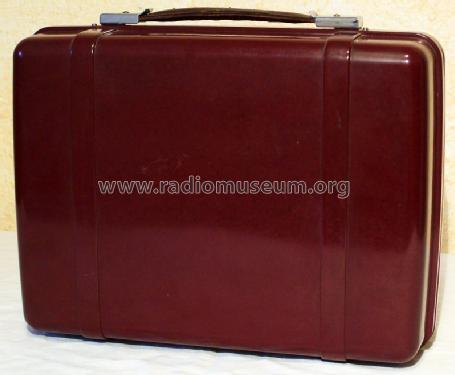

Noraphon-Ultra K1037; Nora; Berlin (ID = 45477) Radio Noraphon-Ultra K1037; Nora; Berlin (ID = 1333038) Radio
Noraphon-Ultra K1037; Nora; Berlin (ID = 1333041) Radio
Use red slider bar for more.
Noraphon-Ultra K1037; Nora; Berlin (ID = 39724) Radio
Nora; Berlin: Noraphon-Ultra K1037 [Radio] ID = 39724 933x649
Select picture or schematic to display from thumbnails on the right and click for download.
For model Noraphon-Ultra K1037, Nora; Berlin:
Noraphon Ultra K1037 Bj. 1954

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1953–1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: DC90 DK92 DF91 DF91 DAF91 DL94 Tr.Gl.=Metal-rectif.
Semiconductors (the count is only for transistors) RL231 RL231
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-220 / 110 & 10,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Noraphon-Ultra K1037 - Nora; Berlin
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 260 x 130 mm / 13 x 10.2 x 5.1 inch
Notes

Dioden: 2× RL231. Allstromnetzteil: 110/160 V DC, 110/125 V AC, 220 V AC/DC.

Der Teleskopdipol ist abnehmbar. Siehe auch Modell "Noraphon Ultra 1037".

Net weight (2.2 lb = 1 kg) 3.9 kg / 8 lb 9.4 oz (8.59 lb)
Price in first year of sale 258.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb
Mentioned in Rundfunk- und Fernseh-Katalog 1954/55
