Serenade W68
Nora; Berlin: Serenade W68 [Radio] ID = 708291 700x467
Select picture or schematic to display from thumbnails on the right and click for download.
|
|

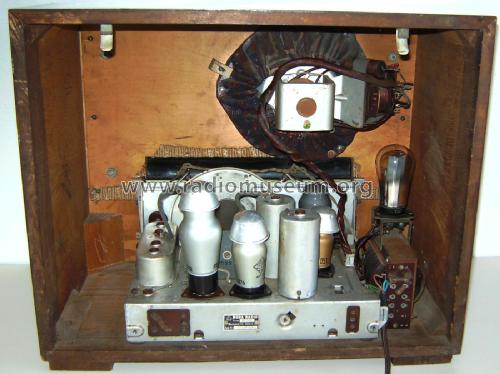

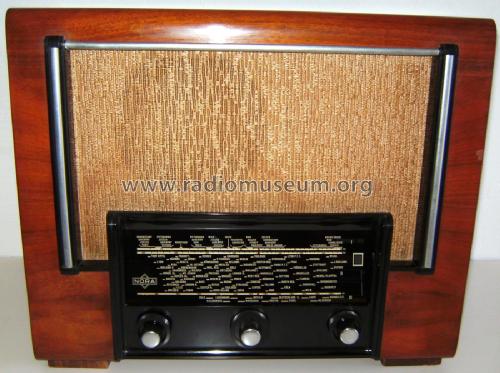

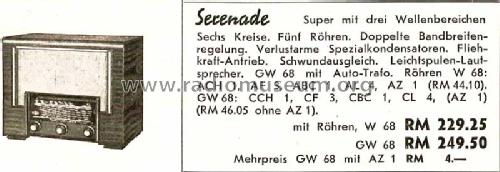

||||
| Year: 1938/1939 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ACH1 AF3 ABC1 AL4 AZ1 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 468 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 220; 240 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: Serenade W68 - Nora; Berlin |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 500 x 420 x 280 mm / 19.7 x 16.5 x 11 inch |
| Notes | variable Bandbreite. Es gibt auch ein Exportmodell Serenade W68 mit magischem Auge. |
| Net weight (2.2 lb = 1 kg) | 15 kg / 33 lb 0.6 oz (33.04 lb) |
| Price in first year of sale | 229.00 RM |
| Source of data | Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb |

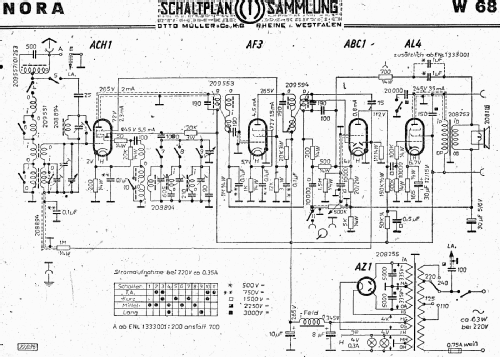

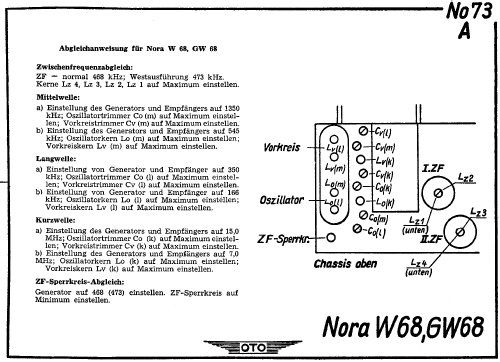

| Circuit diagram reference | Lange+Schenk+FS-Röhrenbestückung |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV. |
