188-WU Ch= 5108V 8 Röhren

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7758

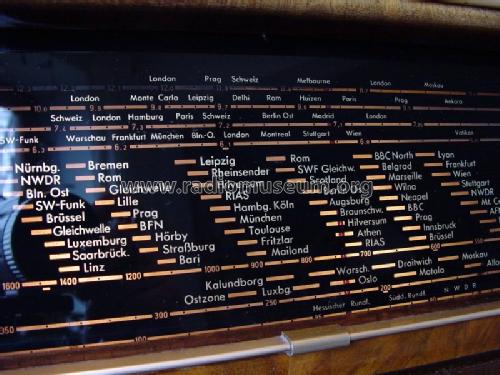

• Picture

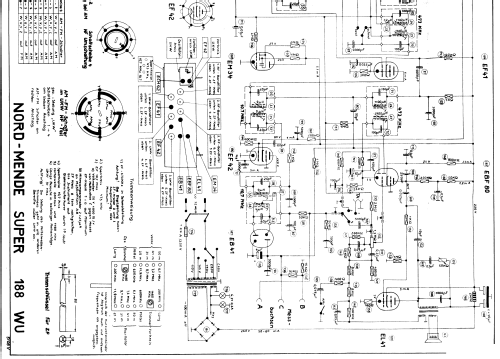

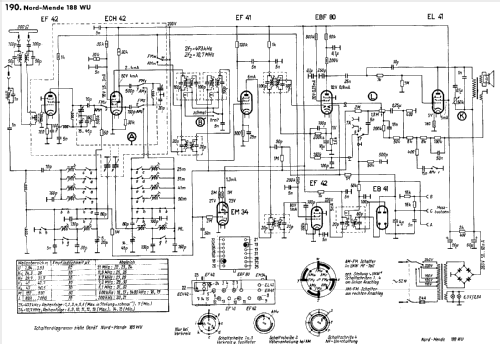

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF42 ECH42 EF41 EF42 EM34 EB41 EBF80 EL41

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 188-WU Ch= 5108V [8 Röhren] - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 390 x 260 mm / 24.4 x 15.4 x 10.2 inch

• Notes
• Nordmende 188 WU mit 8 Röhren und UKW-Vorstufe (EF42).
  Siehe auch die 7-Röhren-Variante 188 WU ohne UKW-Vorstufe.
  Variable Bandbreitenregelung.
  4 gespreizte Kurzwellenbereiche.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 438.00 DM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
