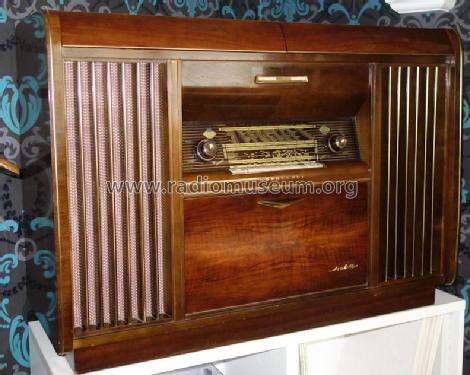

Nordmende,: Arabella 59/3D Ch= 59/632 [Radio] ID = 1889857 793x632
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arabella 59/3D Ch= 59/632, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:

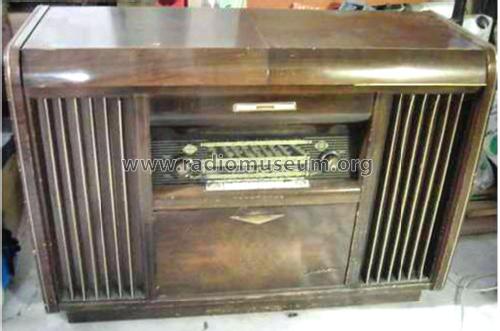

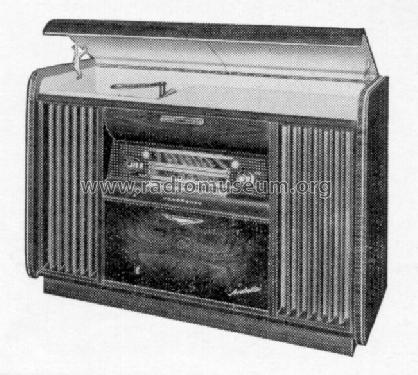

Nordmende Arabella 59

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF89 EM84 EABC80 ECC82 EL84 EL84
Semiconductors (the count is only for transistors) B250C125 OA81
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 10 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 7 or more Loudspeakers
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Arabella 59/3D Ch= 59/632 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1120 x 790 x 455 mm / 44.1 x 31.1 x 17.9 inch
Notes

2 Ausführungen: Nußbaum oder Rüster, seidenmatt.
8 Lautsprecher.

Radiochassis = Tannhäuser 59-3D;
Phonochassis = Dual 1005.

Price in first year of sale 1'148.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59

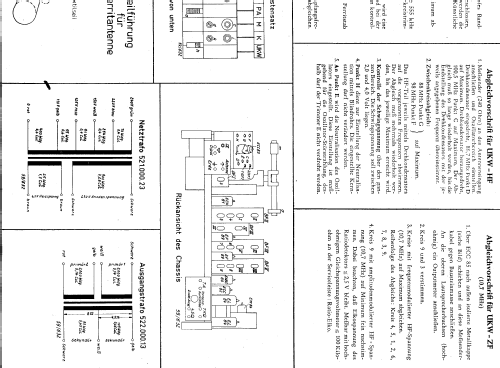

Literature/Schematics (1) -- Original-techn. papers.
