For model Arabella-Stereo Ch= 4/683, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
Nordmende Stereo-Konzertschränke 1963

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: ECC85 ECH81 EF89 EBF89 EM87 EAM86 EF80 ECC83 ECC83 ECC83 ELL80 ELL80
Semiconductors (the count is only for transistors) BA110 OA79 OA79
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out 17 W (unknown quality)
from Radiomuseum.org Model: Arabella-Stereo Ch= 4/683 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1360 x 800 x 400 mm / 53.5 x 31.5 x 15.7 inch
Notes

2-Kanal-Stereo-Verstärker mit 17 W Ausgangsleistung. Anschluss für Nachhallverstärker. Vorbereitet für UKW-Stereo-Empfang mit Decoder 184.218.12.

Stereo-Plattenwechsler mit 4 Geschwindigkeiten, mit Saphir- und Diamantnadel, für 10 Schallplatten.

Ausführungen: Nussbaum hochglanz, Nussbaum mattiert, Teak, Rüster.

Net weight (2.2 lb = 1 kg) 48 kg / 105 lb 11.6 oz (105.727 lb)

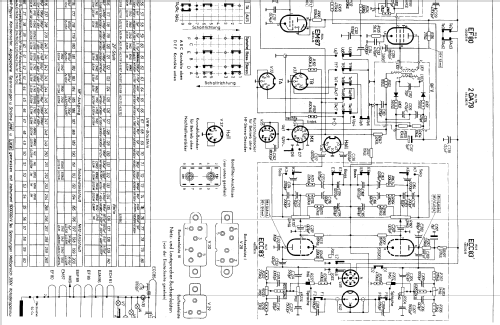

Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original prospect or advert

Model page created by Wolfgang Steeger. See "Data change" for further contributors.



All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Here you find 1710 models, 1605 with images and 1249 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nordmende,: Arabella-Stereo Ch= 4/683
Threads: 1 | Posts: 5
Hits: 821     Replies: 4
nordmende: Nordmende part number cross reference
Adolfo Mazzucco
04.Feb.17
  1

Hello,

This is my first post on RM. Just joined recently.

I have a Nordmende Arabella/Isabella C chassis 4/683C.

I have the english version of the schematics. (will upload these soon for others)

What I am looking for is on the schematics some parts (ie coils) are listed by Nordmende part number only, no values are listed for the component.

Does anyone know of a cross reference of Nordmende part numbers to component value?

Thanks

Tony



Mark Hippenstiel
04.Feb.17
  2

Hello Adolfo,

Welcome to radiomuseum!

I'm not personally aware of such a list. But I have an almost complete library of schematics (as do other members) and I'm most positive that we'll be able to help you out.

By the way: since the export versions of radios differ in parts from domestic models - FM usually has a wider range, chassis numbers are different etc - it would be best if you navigate to the main page and start a new model suggestion with the data you got at hand. That would be the place to upload images that also show up in your personal collection. The schematics for the 4/683C should also go there.

We'll help you through the process.

Best regards
Mark

Adolfo Mazzucco
04.Feb.17
  3

Thanks Mark for your suggestions and warm welcome!

I dont have a need right now for a part number reference just yet, but may in the process of refurbishing the unit. I noticed a coil that looks physically bad, havent tested it yet.

 I do have the  english schematics  that came with the unit, they compare to the german version, from what I have seen.

I dont know if what I have is an export version but the radio looks different to the unit listed on RM  (attached pic).

Thanks

Adolfo







Attachments

Mark Hippenstiel
04.Feb.17
  4

Hello Adolfo,

while the components (tubes etc) and most of the technical data otherwise might be identical, you can already see that the C (export) model has the extended FM range up to 108 Mc - where the domestic version only goes up to 104 Mc.

So the proper procedure is to create the model, and upload the scan of the schematic and all that to the new model page. You can do that in the process of creating the suggestion, or later, whatever is ok for you. Then in the future, when and if you need help, you'll post your questions from the new model page.

When all is done, I will move this thread to the new model page, too.

Thanks, and enjoy your stay - and the hobby!

Kind regards
Mark

Adolfo Mazzucco
04.Feb.17
  5

Thank for confirming that this is an export model "C" , now I know.

 It also has a solid state stereo decoder which I think is  after market, as I dont see it in the schematics, the domestic version has a seperate tube stereo decoder, the English or export schematics doesnt list either,from what I can see. I will need to look closer at the schematics.

I will definately create a new product page with schematics and photos, over the next few days.

Will let you know when its done so you can move this thread.

Thank again

Adolfo
