• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206455

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EBC81 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

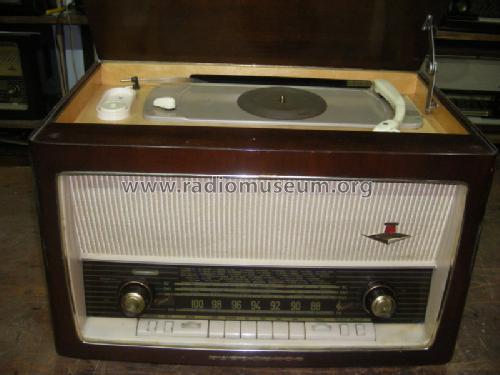

• Model: Phono-Super Stereo E708 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 560 x 340 x 320 mm / 22 x 13.4 x 12.6 inch

• Notes

• Exportgerät ähnlich dem Phono-Super-Stereo Ch= 1/616.
  Phono-Chassis = PE4230.

• Author
• Model page created by João Luis Mendes Colaço. See "Data change" for further contributors.
